Engineering Guide to Aluminium Profiles for Automation: Selection, Linear Motion Integration, and Structural Design

October 28, 2026
1

Specifying the right aluminium profiles for automation often separates a reliable, high-speed assembly cell from a machine plagued by micro-vibrations and sensor drift. When mechanical engineers design industrial robotic positioning systems or multi-axis gantries, structural aluminium profiles for automation serve as the physical datum for every moving axis. Treating these custom aluminium extrusion linear rails as generic framing commodities invites premature bearing wear and missed cycle times.

A linear motor carriage accelerating at three gravities does not care how clean a CAD model looks on screen. It reacts to every micron of twist, thermal expansion, and elastic deflection in the underlying beam. Understanding how alloy metallurgy, cross-sectional geometry, and extrusion tolerances interact allows system integrators to build faster, stiffer, and more repeatable automated machinery.

Why Aluminium Profiles for Automation Dominate Modern Machine Architecture

Walk through a semiconductor packaging plant or a lithium-ion battery assembly line, and you will often encounter extruded aluminum structures on dynamic axes. Engineers choose aluminium profiles for automation because modern throughput targets demand low moving mass paired with predictable structural stiffness. However, replacing steel with aluminum requires a clear grasp of structural mechanics rather than simple part-for-part substitution.

Dynamic Stiffness vs. Moving Mass in High-Speed Gantries

In a multi-axis pick-and-place gantry, the X-axis and Z-axis beams represent dead weight carried by the Y-axis drive motors. According to Newton’s second law, cutting the mass of a moving bridge directly reduces the inertial torque required for a given acceleration. Reducing moving mass may help improve acceleration performance, while motor sizing, settling time, and resonance avoidance must be evaluated for the complete system including its loads, stiffness, natural frequencies, and control tuning.

Aluminum has a density of approximately 2.70 g/cm³, roughly one-third the density of carbon steel. When designed with a high-inertia hollow cross-section, an aluminum linear rail resists bending loads while keeping the moving carriage assembly light. This high strength-to-weight ratio keeps inertial forces low, preventing overshoot when an optical inspection head stops over a circuit board.

The Hidden Cost of Welded Steel vs. Precision Extruded Framing

Welded steel structures look deceptively economical during initial raw material estimates, yet their hidden processing costs can accumulate rapidly on the shop floor. Welding introduces localized thermal stresses that warp long structural tubes, and depending on the material, applicable code, and dimensional requirements, a steel frame may require stress-relief annealing in an oven before machining. Afterward, a large-bed CNC gantry mill may need to skim the mounting surfaces flat, adding time to the project schedule.

By contrast, precision aluminium profiles for automation emerge from the extrusion die with integrated mounting channels, keyways, and reference flats already formed. While extreme accuracy applications still benefit from light datum skimming, many automated transfer lines bolt linear guides directly onto precision-extruded aluminum tracks. Furthermore, when a production line changes product formats, bolted aluminum assemblies can be reconfigured in hours rather than scrapped, making them well suited for reconfigurable machine structures.

Vibration Damping and Thermal Expansion Realities

Every material selection involves engineering trade-offs, and aluminum’s primary limitation is its modulus of elasticity. At roughly 69 to 70 GPa, aluminum’s Young’s modulus is about one-third that of structural steel, meaning an identical cross-section will deflect noticeably more under the same static load. Additionally, aluminum expands at roughly 23 micrometres per metre per degree Celsius, nearly twice the thermal expansion rate of steel.

Seasoned machine builders overcome this elasticity not by wishing aluminum were steel, but by exploiting the freedom of the extrusion die. By pushing material outward from the neutral axis and increasing the profile depth, designers can raise the area moment of inertia substantially; calculate it for the actual cross-section to verify the improvement. A deeper, multi-chamber aluminum extrusion can approach the bending stiffness of a smaller steel tube while remaining considerably lighter.

Beyond Standard T-Slots: Custom Extrusion Linear Rails and Actuator Housings

Standard modular T-slot framing works admirably for machine guarding, ergonomic workbenches, and static conveyor supports. However, when a project involves high-speed linear actuators or direct-drive linear motors, standard square T-slot bars reach their mechanical limits. Purpose-built aluminium profiles for automation integrate the structural beam, guide rail seat, and motor housing into one unified profile.

Integrating Linear Motor Stator Housings and Guide Ways

In a conventional linear actuator assembly, an engineer bolts an adapter plate to a structural frame, bolts a linear motor housing to the adapter, and aligns two parallel rail tracks. Every bolted interface introduces a mechanical tolerance stack-up and a potential slip plane under vibration. Custom extrusion linear rails reduce these intermediate plates by forming the stator cavity and guide shoulders in a single extrusion pass.

Consider a tubular linear motor design where magnetic flux symmetry around the central shaft is important for smooth thrust. By extruding a profile with a precision central circular bore surrounded by four symmetrical stepped outer ridges, the housing helps maintain concentricity along the stroke. Similarly, wide twin-track profiles can incorporate two raised trapezoidal rails flanking a recessed central flat, complete with internal cavities for optical encoders and hall-effect sensors, according to the supplied profile data.

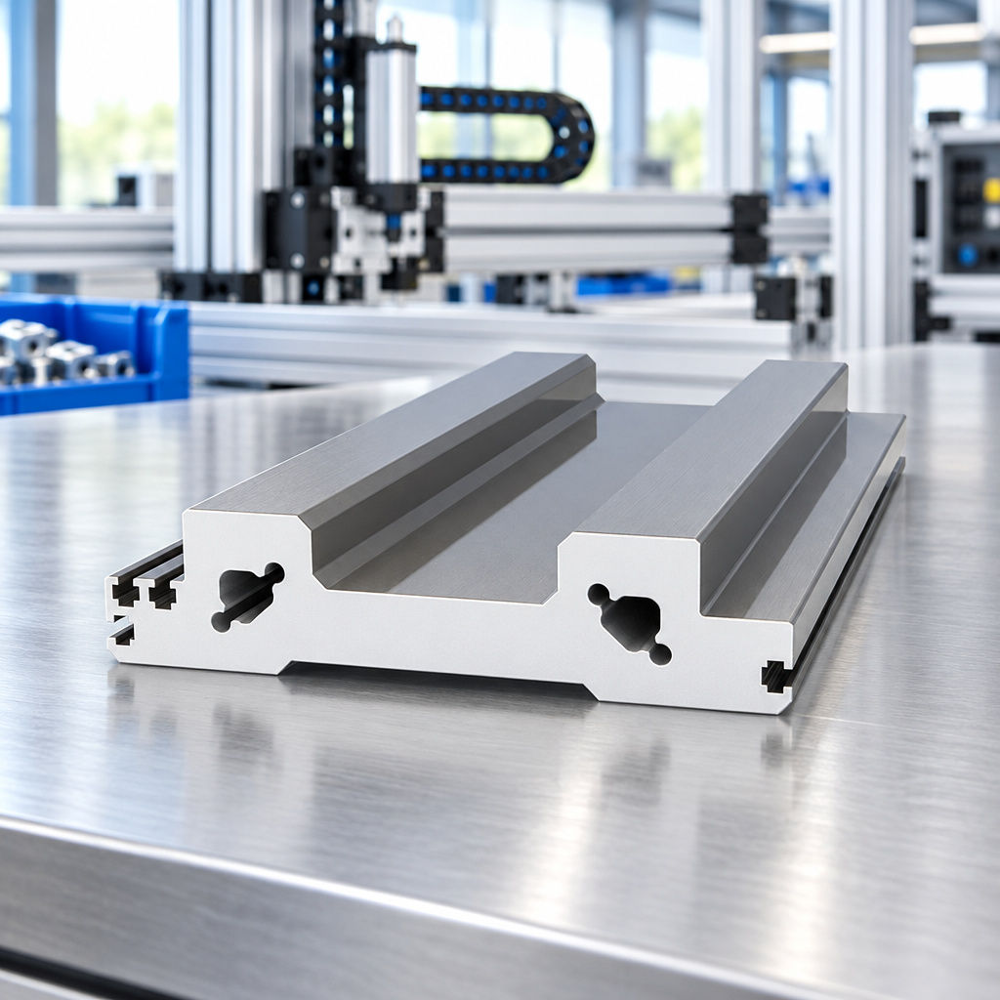

3D perspective rendering of a broad linear guide rail extrusion with twin guide tracks

Thermal Management in Direct-Drive Linear Actuators

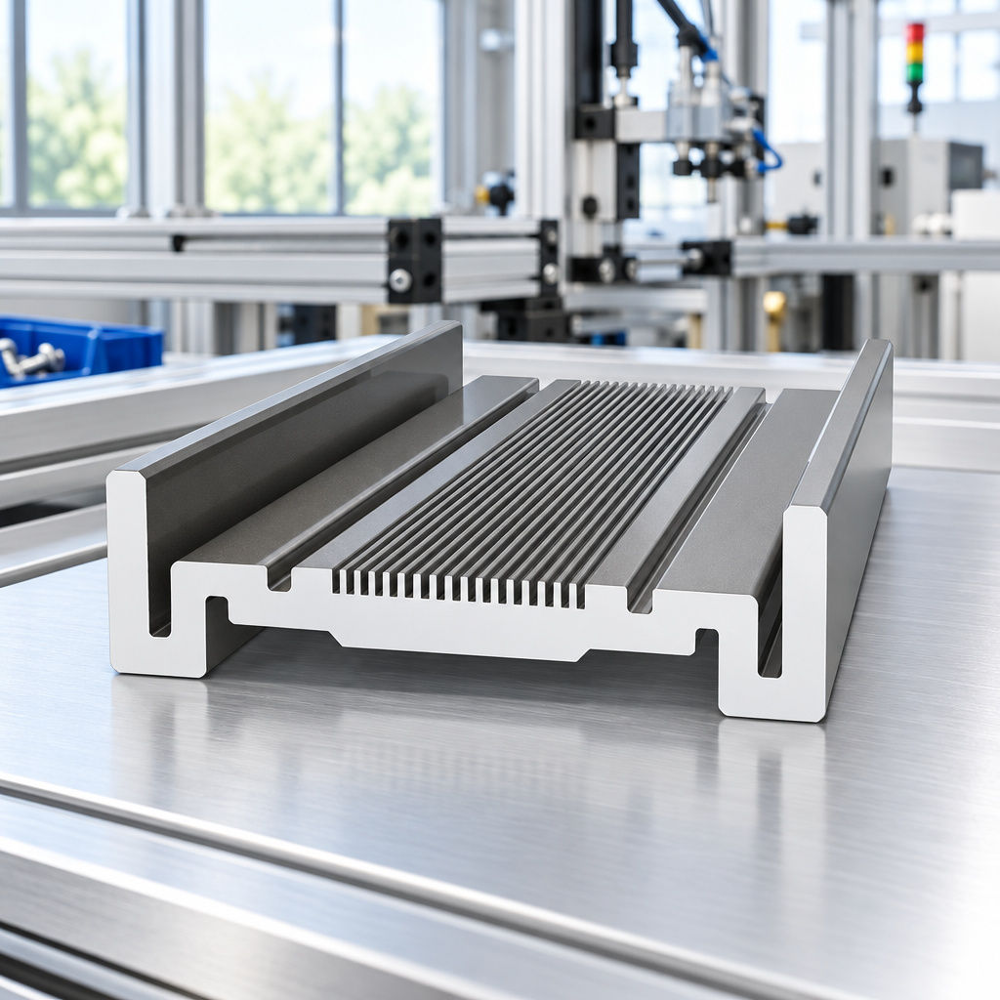

Direct-drive linear motors eliminate mechanical wear items like ball screws and timing belts, but they introduce a notable thermal challenge right inside the machine bed. In a moving-coil design, the current-carrying coil assembly rides directly over the permanent magnet track, and resistive heating transfers into the actuator base. If that heat remains trapped, thermal expansion can bow the rail and affect positioning repeatability.

Aluminum’s relatively high thermal conductivity, typically cited in the range of 160 to 200 W/m·K across common 6xxx-series extrusion alloys, allows the structural rail to double as a passive heat exchanger. Instead of attaching separate cooling plates, engineers can specify low-profile linear rail extrusions featuring a dense array of thin vertical cooling fins down the center channel, a configuration included in this supplier’s linear rail lineup. When airflow and thermal design are adequate, air flowing across these extruded fins can aid heat dissipation before thermal gradients accumulate.

Structural Geometry: Hollow Chambers, Webbing, and Torsion Resistance

Open C-channel profiles behave poorly when subjected to eccentric loads, such as a robotic arm cantilevered off the side of a linear slide. Under off-center loading, an open channel twists like a wrung towel, causing recirculating ball carriages to bind against their steel guideways. Resisting torsional deflection requires closed hollow chambers that allow shear stress to flow continuously around the perimeter.

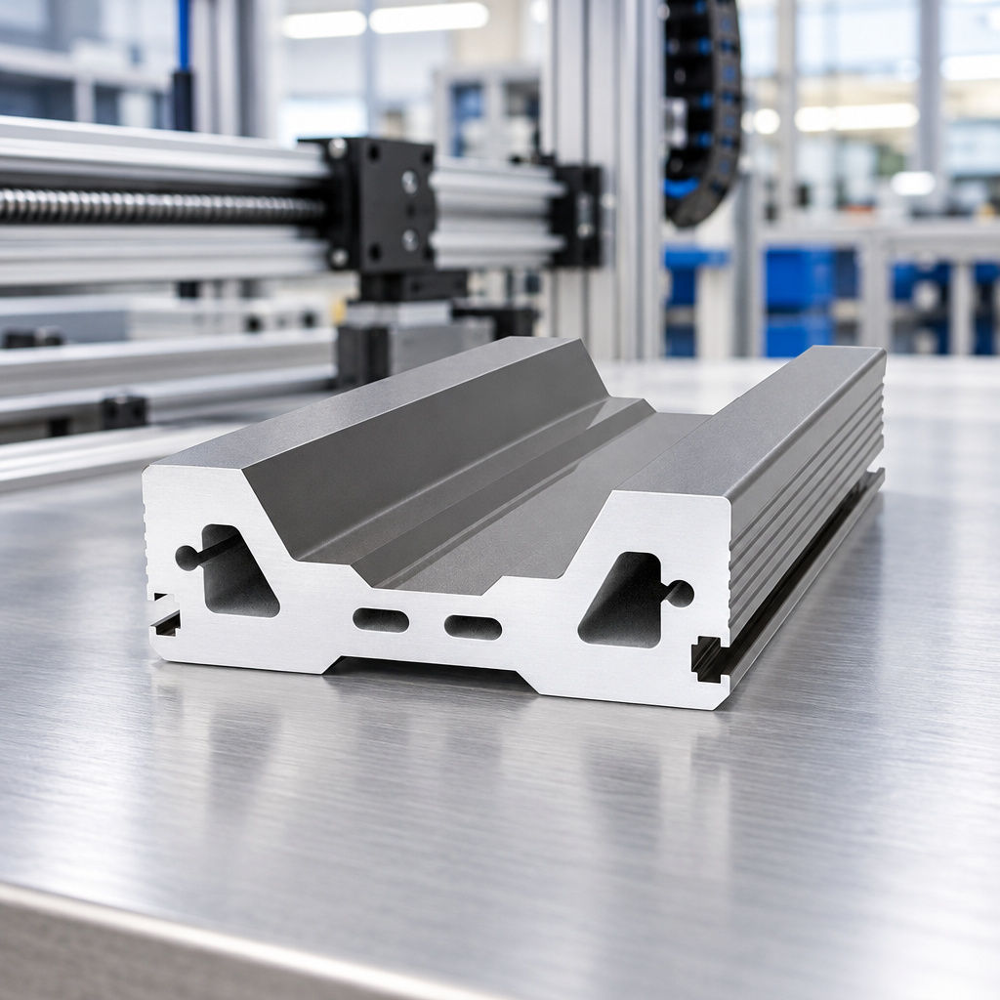

Looking closely at a heavy-duty aluminum linear actuator base reveals how internal webbing addresses this torsional problem. Raised outer shoulders house closed hollow triangular chambers reinforced with internal keyway slots, while the side walls feature horizontal heat-dissipating ridges and bottom T-slots. In deeper U-channel guide rails, complex internal triangular void channels and continuous screw-mounting bosses tie the tall side flanges to a stepped inner floor, which helps limit wall splay under lateral thrust.

Metallurgical Selection: Comparing 6063, 6060, and 6061 Alloys for Automation

Choosing the cross-sectional shape is only half the engineering battle; selecting the wrong aluminum alloy can lead to die tearing during extrusion or premature yielding in service. In industrial machinery, the 6xxx series (aluminum-magnesium-silicon alloys) is widely used because it permits precipitation hardening directly at the extrusion press or in aging ovens. For custom aluminium profiles for automation, three specific alloy and temper combinations handle the vast majority of linear motion requirements.

Alloy & Temper	Extrudability & Geometry Complexity	Primary Automation Applications
6063-T5	Excellent; supports thin fins and smooth surfaces	Linear motor heat sink housings, intricate sensor tracks, anodized enclosures
6063-T6	Excellent; supports thin fins and smooth surfaces	Higher-load linear tracking rails, intricate sensor tracks, anodized enclosures
6060-T6	Available extrusion alloy; confirm geometry and tolerances for the specific die	Precision multi-chamber actuator bases, asymmetric guide rails
6061-T6	Moderate; requires thicker walls and simpler dies	Heavy-duty robotic gantry beams, high-load CNC linear platforms, structural plates

When sizing a load-bearing member, use the certified mechanical properties for the specific profile and temper supplied by the manufacturer or testing laboratory, as actual strength varies with the applicable extrusion standard, profile form, and wall thickness.

6063-T5 and T6: Surface Consistency and Complex Internal Geometries

When a linear rail cross-section includes delicate features, such as closely spaced cooling fins, miniature cable clip grooves, or thin retaining walls, alloy 6063 is a common choice. Because it contains a carefully balanced ratio of magnesium and silicon with minimal copper or chromium additions, 6063 flows smoothly through intricate porthole extrusion dies at moderate billet temperatures. Wall uniformity depends on the profile design, die, and extrusion conditions, and should be confirmed for the specific section.

Beyond geometric intricacy, 6063 generally responds well to electrochemical anodizing, producing a uniform oxide layer with fewer visible dark intermetallic spots than higher-alloy materials. In the T5 temper (cooled from extrusion temperature and artificially aged), it offers reliable dimensional stability for enclosures and light actuator bodies. Specifying the T6 temper (solution heat-treated and artificially aged) raises yield strength toward the upper end of its typical range for higher-load linear tracking rails.

6060-T6: An Available Extrusion Alloy

Closely related to 6063, alloy 6060 is frequently specified under European extrusion standards and is an available alloy for this product line. Confirm with the supplier that the specific design and die can produce the required asymmetric sections and hold the required tolerances. If metal flows unevenly through the die bearing, the emerging rail can bow or twist before it reaches the cooling table.

The supplier’s product range for linear rails includes applications such as long-stroke multi-axis slide assemblies and pick-and-place linear guide platforms. Alloy selection depends on the load and the certified properties of the specific profile. When an engineer designs a complex profile with four or five asymmetric internal hollow chambers, confirm with the supplier that the specific die and profile can maintain the required tolerances and uniformity from one end of a long bar to the other. If stress relief is required, specify a stress-relieved temper such as T6511 and confirm availability with the supplier.

6061-T6: Heavy-Duty Load Capacity for High-Stress Robotic Bases

Sometimes sheer mechanical strength outweighs the need for thin cooling fins or mirror-smooth cosmetic anodizing. When a gantry beam must support a heavy multi-axis robot or withstand high cutting forces in CNC equipment, engineers often step up to alloy 6061-T6. Thanks to higher alloying additions, including roughly 0.25 percent copper, some 6061-T6 extrusion strength values can overlap those of selected structural steel grades; compare certified properties for the specific materials.

However, 6061 resists deformation inside the extrusion press more than 6063 or 6060. Extruding 6061-T6 typically requires slightly thicker minimum wall sections, larger corner radii, and more conservative hollow chamber geometries to avoid tearing or die mandrel breakage. It also machines cleanly with short, manageable chips, making it well suited to heavy linear rail bases that undergo extensive secondary CNC drilling, tapping, and pocket milling.

Critical Dimensional Tolerances and Surface Treatments in Linear Motion

Even a strong alloy will underperform in a linear motion assembly if the profile surface waves like a washboard or corrodes in a humid factory. Unlike architectural window frames where visual appearance rules, aluminium profiles for automation depend heavily on geometric form tolerances and surface durability. Understanding what an extrusion press can naturally hold, and how surface finishes interact with those dimensions, helps prevent costly assembly issues.

Flatness, Straightness, and Twist: Why Millimetres per Metre Matter

When mounting two steel linear guide rails in parallel along an aluminum actuator base, three geometric tolerances govern success: flatness across the width, longitudinal straightness, and axial twist. Industry extrusion tolerance standards define permissible deviations in millimetres per metre of length for general and precision profiles. If axial twist exceeds the compliance of the linear bearings, carriage preload can spike, generating heat and accelerating wear on the bearing raceways.

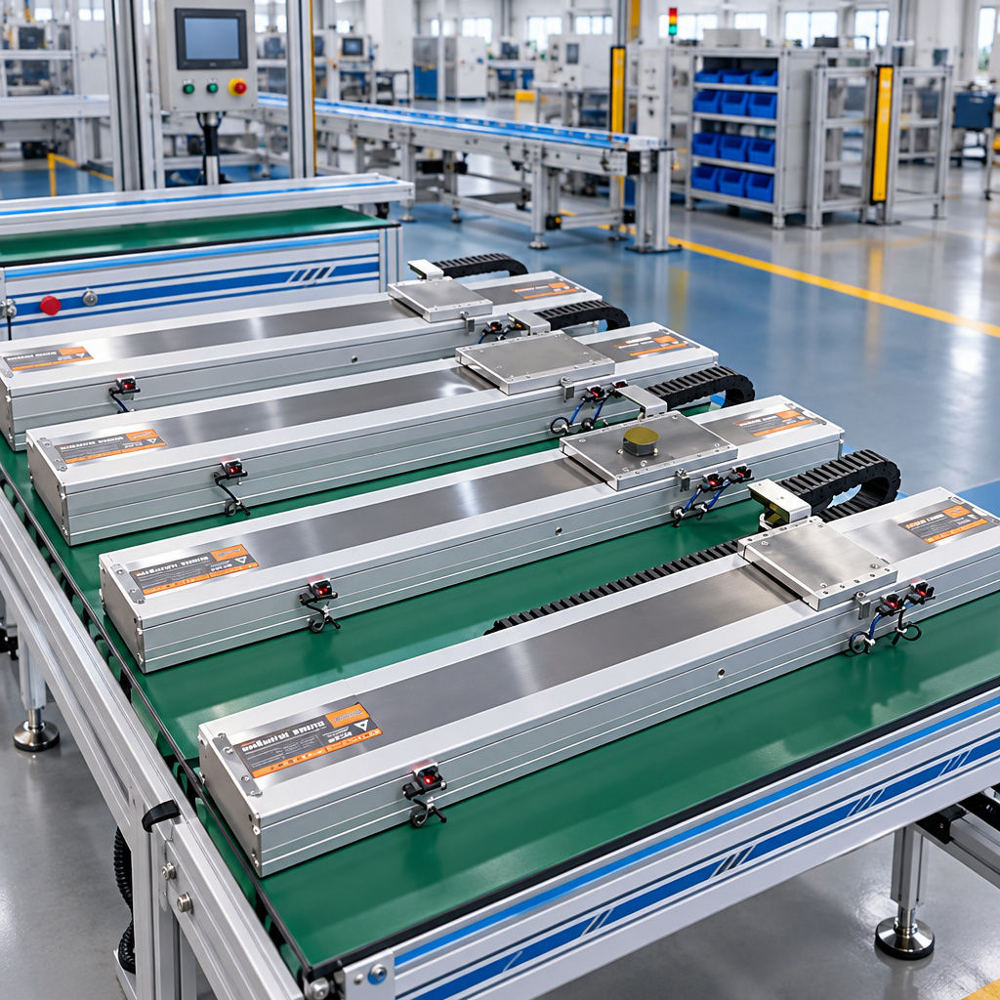

High-angle industrial photograph of assembled aluminum linear actuator modules with stainless steel dust cover strips and drag chains

In practical factory builds, precision extrusion can deliver consistent profile geometry for direct assembly in many pick-and-place modules, per the manufacturing approach described for this product line. Direct mounting is conditional on measured or certified profile tolerances meeting the guide manufacturer’s requirements. As seen in assembled linear motor units equipped with stainless steel dust cover strips and polymer cable drag chains, consistent profile geometry supports smooth carriage travel over long strokes. For ultra-precision optical or semiconductor stages requiring very tight flatness, engineers often add a small machining allowance on the rail mounting pads for a final skim pass.

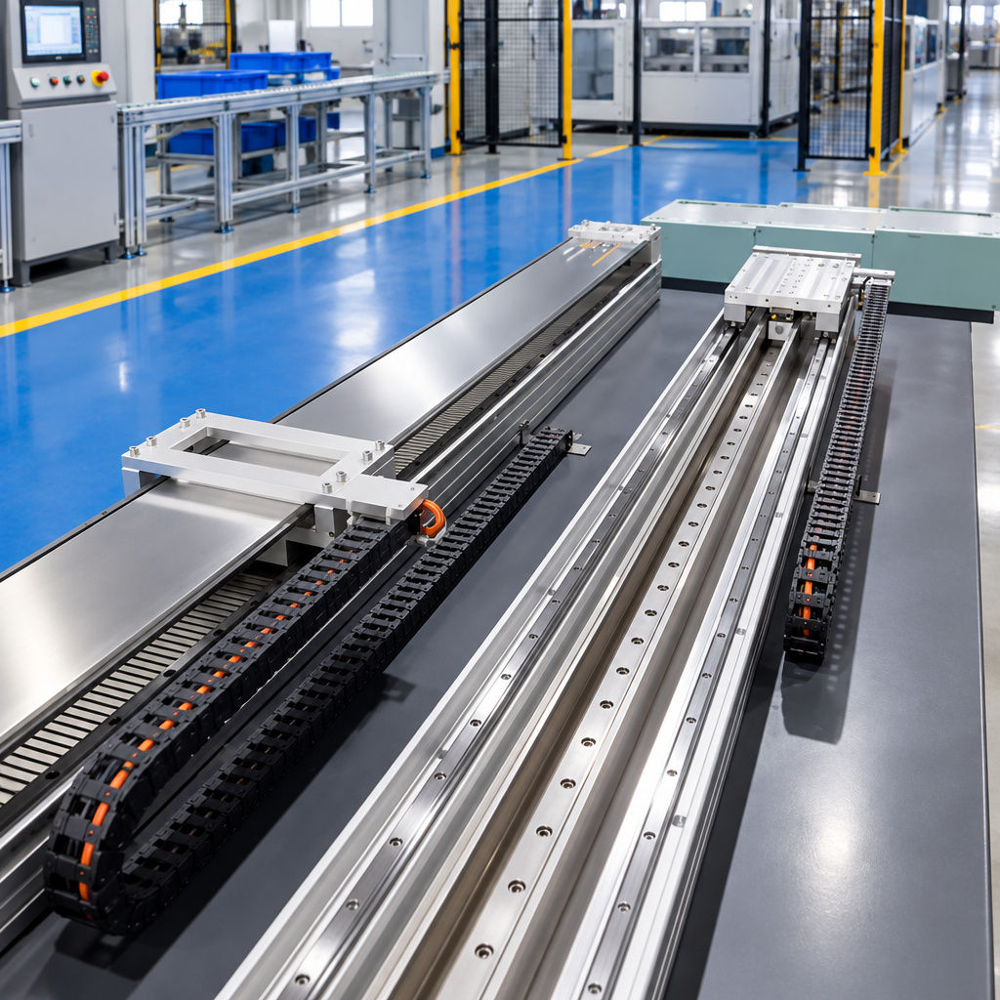

Overhead workshop view of long-stroke industrial linear guide and motor rail assemblies with exposed guide rails and cable track

Choosing the Right Surface Finish for Industrial Environments

Raw aluminum forms a thin natural oxide skin almost instantly in air, yet industrial environments subject linear rails to coolants, abrasive dust, and sliding friction. Selecting the appropriate surface treatment protects the base metal and matches the operational demands of the automated cell:

Mill Finish: Supplied directly as extruded without secondary chemical coating, mill finish is cost-effective for internal structural frames or profiles scheduled for full post-machining and painting, though it scratches easily and shows oxidation in humid air.
Anodized Finish: An electrochemical process that grows a dense, integral aluminum oxide layer on the surface, increasing surface hardness, wear resistance, and electrical insulation. The coating adds thickness that must be accounted for on critical fits and bearing seats.
Electrophoresis (E-Coating): Applies an electrophoretically deposited clear or tinted resin film over a specified pretreatment, delivering smooth aesthetics. Chemical compatibility, including resistance to alkaline cleaners in medical or electronics assembly lines, depends on the coating supplier’s data for the chosen system.
Powder Coated: Applies electrostatically charged polyester or epoxy-polyester powder cured in a thermal oven, providing a thick, impact-resistant barrier for outer machine safety frames, though masking is required on precision linear rail datum flats.
Fluorocarbon (PVDF) Coating: Uses fluoropolymer resins to resist harsh chemical fumes, ultraviolet degradation, and corrosive splashes, making it suitable for automated handling systems operating in chemical processing or coastal facilities.

Step-by-Step Decision Framework for Specifying Automation Extrusions

Transitioning from a conceptual motion sketch to a production-ready extrusion drawing requires systematic coordination between mechanical design and extrusion tooling engineering. Rushing a profile cross-section into steel die cutting without reviewing wall thickness transitions or secondary machining steps frequently triggers revision delays. Following a structured specification workflow keeps custom linear rail projects on schedule and within budget.

Calculating Deflection and Torsional Loads Over Long Strokes

Before finalizing outer profile dimensions, quantify both static payload weight and dynamic inertial forces during peak acceleration:

Map the Load Vectors: Calculate the total moving mass (carriage, tooling, payload) and multiply by peak acceleration across all three axes to determine pitch, yaw, and roll moments acting on the linear rail.
Verify Moment of Inertia (Ix and Iy): Export the proposed profile cross-section from CAD to verify that the area moments of inertia limit mid-span bending deflection below your linear bearing manufacturer’s maximum angular misalignment spec.
Balance Wall Thickness Ratios: Keep adjacent wall thicknesses within a moderate ratio wherever possible to help prevent sink marks on precision reference flats during extrusion cooling.

Designing for Secondary Machining and Assembly Efficiency

A well-designed extrusion die shifts labor out of the CNC machine shop and builds assembly features directly into the raw bar:

Integrate Fastener and Sensor Features: Incorporate continuous drill-guide grooves on side faces, internal screw bosses for end-cap attachment, and dedicated T-slots for reed switches and cable carrier brackets.
Specify Datum Surfaces Clearly: Mark critical contact flats, such as the seating step for a profiled steel guide rail, on your 2D engineering drawing so the extruder positions die weld seams away from critical bearing zones.

Aligning Production Volume, MOQ, and Lead Times

Once the technical drawing is frozen, engineering specs must align with realistic manufacturing logistics and supply chain capacity. Tooling and unit economics depend on the design and volume; compare supplier quotations for the specific profile and alternative manufacturing processes. For custom aluminium extrusion linear rail sections, standard minimum order quantities typically range from 250 to 500 kg per section, with production delivery times running between 10 and 20 days depending on surface treatment and CNC fabrication complexity, based on figures supplied for this product line.

Partnering with an experienced extruder helps complex multi-chamber linear rails move smoothly from CAD to the assembly bench. Established in 1998, Xinhe Aluminium brings more than 25 years of manufacturing experience across R&D, extrusion, and fabrication, supplying customers in over 50 countries and regions. For us, supporting industrial automation projects means backing custom profile development, spanning length cutting, precision drilling, and multiple surface treatment options, with a library of over 5,000 profile products and an annual capacity of 200,000 tons.

Frequently Asked Questions About Aluminium Profiles for Automation

Can extruded aluminium linear rails support steel linear guideways directly without post-machining?

Direct mounting is conditional on the measured or specified profile tolerances meeting the guide manufacturer’s requirements. When produced using precision extrusion dies in alloys like 6060-T6 or 6063-T6, flatness and straightness tolerances may be adequate for standard preload ball guide requirements in many general automation, packaging, and material handling applications. Machine the mounting datum when the as-extruded tolerances do not meet the guide’s accuracy requirements. For ultra-precision CNC machinery or sub-micron semiconductor stages using heavy-preload roller guides, skim-milling the mounting datum after extrusion is advisable.

How do you prevent galvanic corrosion when bolting stainless steel fasteners to aluminium automation profiles?

In dry, climate-controlled indoor factories, bolting austenitic stainless steel (such as A2/304 or A4/316) fasteners into anodized aluminum profiles rarely causes significant galvanic corrosion, since the large aluminum profile acts as an expansive anode relative to the small fastener cathode, and the anodized oxide layer adds electrical insulation. In high-humidity or washdown environments, engineers can reduce thread seizure and localized pitting by using a compatible isolation method for all metal contact surfaces. A nylon washer under the bolt head alone does not isolate the threaded joint. Use only a joint compound or coating system whose manufacturer confirms suitability for the materials and environment, and consider coated helical thread inserts where appropriate.

What is the typical minimum order quantity and tooling lead time for custom automation profiles?

Tooling and production lead times vary with die complexity and part requirements. For custom linear rail and actuator profiles, the typical minimum order quantity cited for this product range is 250 to 500 kilograms per cross-sectional profile. Once the profile drawing is approved, extrusion, heat treatment, surface finishing, and delivery typically take 10 to 20 days according to the supplied specifications.

Which surface treatment is best for cleanroom or high-humidity automated assembly lines?

Clear or hard-coat anodizing and electrophoresis (e-coating) are options to evaluate for cleanroom, medical, and high-humidity electronics assembly lines. Unlike liquid paint or thick powder coatings that can chip under mechanical impact and shed particulate contamination, anodizing converts the aluminum surface itself into an integral oxide layer. Electrophoresis can add a smooth, sealed film over a specified pretreatment, potentially improving wipe-down characteristics. Verify particle-shedding performance and compatibility with isopropyl alcohol, mild alkaline disinfectants, or other cleaners with the coating supplier for the intended process, as suitability depends on the specified finish and operating conditions.

Conclusion: Building Reliable Motion Systems with Precision Extrusions

Designing high-throughput automated machinery requires looking at structural framing and linear actuator bases as active mechanical components rather than passive supports. By leveraging custom cross-sectional geometry, such as closed triangular torsion chambers, integrated cooling fins, and integral guide shoulders, engineers can offset aluminum’s lower elastic modulus while shedding considerable moving gantry weight. Pairing the right geometry with purpose-selected alloys like 6063-T5/T6, 6060-T6, or 6061-T6 helps each axis accelerate cleanly with reduced thermal drift or torsional binding.

When evaluating suppliers for your next generation of machinery, align your CAD tolerances early with an extrusion partner capable of holding tight flatness specs and delivering finished, ready-to-assemble rails. Whether your project requires standard modular framing or custom aluminium profiles for automation such as integrated linear motor housings and precision aluminium extrusion linear rails, specifying the right alloy, temper, and surface finish upfront supports long-term positioning accuracy on the factory floor.
