LED Aluminium Profile Guide: Thermal Engineering, Extrusion Alloys, and Architectural Integration

Walk into a newly renovated retail store or modern residence after handover, and you may occasionally see lighting installations where flexible LED strips have begun sagging from millwork or showing uneven illumination. Improper thermal management or inadequate mechanical support can lead to performance or installation issues with some LED tape systems. Specifying an appropriate LED aluminium profile provides a conductive thermal pathway and mechanical support structure, though the actual performance depends on the LED strip characteristics, installation method, and operating conditions. By combining a structural extrusion channel with a precision optical diffuser, engineers and contractors transform flexible diode tape into a more stable, architectural-grade linear luminaire.

Most buyers initially view an aluminium channel for LED strip lighting as a purely cosmetic housing meant to hide exposed circuit boards. That assumption overlooks the underlying physics of solid-state lighting. Every diode mounted on a flexible printed circuit board acts as a miniature heat source, and trapping that thermal energy against wood, drywall, or plastic accelerates lumen depreciation. Understanding how alloy metallurgy, wall thickness, surface chemistry, and channel geometry interact allows project teams to select extrusions that protect lighting investments for years rather than months.

Why Bare LED Strips Fail Without an Aluminium Channel

Mounting a bare LED tape directly onto timber cabinetry or painted gypsum board invites premature system failure. While flexible strips appear cool to the touch compared to incandescent bulbs, their microscopic semiconductor junctions generate concentrated thermal loads that require a conductive metal pathway to escape. The exact thermal output varies by LED efficiency, drive current, and ambient conditions, but higher-power architectural strips generate substantial heat that non-conductive substrates cannot dissipate effectively.

The Thermodynamics of LED Junction Temperatures

Light-emitting diodes convert a portion of their electrical input into visible photons, while the remainder becomes heat at the semiconductor junction. The energy distribution depends on LED efficiency and operating conditions. When installers stick a flexible strip onto timber or MDF, the substrate acts like a thermal blanket because wood is typically a poor thermal conductor, though actual thermal conductivity varies with wood species, density, moisture content, and grain direction. This thermal resistance causes heat to accumulate at the LED junction rather than dissipating into the surrounding environment.

Without a conductive heat sink, printed circuit board temperatures can rise significantly during operation. Elevated junction temperatures may degrade phosphor coatings and accelerate chromaticity shifts, reducing the rated lifespan of the lighting installation. The specific temperature rise and resulting service life depend on the LED strip’s power density, the mounting surface’s thermal properties, ambient ventilation, and the manufacturer’s thermal design. LED manufacturers typically specify maximum junction temperatures and recommended mounting methods in their technical documentation.

Bonding that same flexible strip inside an extruded LED aluminium profile changes the thermodynamic equation. Aluminium acts as a passive radiative and convective heat sink, drawing thermal energy away from the copper solder pads and spreading it across the channel body. The thermal performance improvement depends on the profile’s cross-sectional mass, surface area, alloy conductivity, and installation method. Heavy-walled 6063-T5 channels with adequate surface exposure provide better heat dissipation than ultra-thin decorative trims, helping maintain lower operating temperatures and potentially extending useful LED lifespan according to the strip manufacturer’s thermal derating curves.

Eliminating Hotspot Glare and Adhesive Peeling

Heat also attacks the pressure-sensitive acrylic adhesive backing pre-applied to flexible LED strips. When a strip goes through daily thermal expansion cycles on a porous, dusty, or painted surface, the adhesive bond may weaken over time. Repeated thermal cycling can cause the tape to lose contact with the mounting surface, leading to sagging or detachment in longer runs. The adhesive performance depends on surface preparation, substrate cleanliness, and the temperature range experienced during operation.

A rigid aluminium channel provides a flat, degreased, high-surface-energy metal bed where double-sided thermal tape can form a more stable bond. Even in high-vibration commercial ceilings or damp kitchen joinery, the smooth interior floor of an extruded slot helps keep the flexible circuit board aligned and secure. Proper installation following both the LED strip manufacturer’s and the profile manufacturer’s guidelines ensures reliable mechanical retention. Surface preparation including degreasing and ensuring clean, dry contact surfaces improves adhesive performance.

Beyond mechanical retention, bare diodes create harsh visual glare known in the lighting trade as spotting or dotting. Looking directly at exposed surface-mount diodes causes eye fatigue and casts speckled reflections across polished stone countertops, dark marble tiles, or stainless steel appliances. Pairing an LED aluminium profile with a snap-in polycarbonate or PMMA diffuser scatters those intense point sources into a smooth, continuous ribbon of illumination, improving visual comfort in occupied spaces.

Metallurgy Matters: Selecting the Right Alloy for Channel Profiles

Not all aluminium extrusions conduct heat or accept surface finishes equally. When sourcing an LED aluminium profile for commercial or residential builds, the chemical composition of the billet directly determines how efficiently the channel cools the diodes and how cleanly its edges machine during installation. Different aluminium alloys offer varying combinations of thermal conductivity, mechanical strength, extrudability, and surface finish quality.

6063-T5 and 6063-T6: The Architectural Thermal Standard

In architectural extrusion manufacturing, 6063 aluminium alloyed with magnesium and silicon is widely used for linear lighting enclosures. The 6063 alloy is commonly chosen for architectural profiles due to its excellent extrudability and surface finish quality. Typical thermal conductivity values for 6063-T5 reach approximately 200 to 201 W/(m·K), though actual values should be verified with supplier data for the specific alloy composition and temper. This high thermal conductivity makes 6063 alloys particularly suitable for LED heat dissipation applications.

The T5 and T6 temper designations refer to how the profile is cooled and artificially aged after leaving the extrusion press. T5 indicates that the profile is cooled from elevated shaping temperature and artificially aged, while T6 undergoes solution heat treatment followed by artificial aging. When an installation involves spanning open ceiling grids where higher tensile and yield strength are needed to prevent mid-span deflection, 6063-T6 delivers enhanced mechanical properties compared to T5. The dimensional tolerances and flatness of long extrusion lengths should be verified with the manufacturer’s specifications for the specific profile design.

Primary 6063-T5/T6 extrusions flow smoothly through intricate steel dies during manufacturing, allowing production of complex cross-sectional geometries. This fluidity allows manufacturers to form internal lens grooves, dovetail mounting slots, and cooling ribs, enabling cross-sectional designs that optimize both thermal performance and mechanical installation features. The alloy’s excellent extrudability supports tight tolerances and clean surface finishes in finished profiles, though the final quality depends on the specific profile design and manufacturing process.

6463-T5: When High-Specular Brilliance Meets Heat Dissipation

While 6063 handles the vast majority of recessed and surface-mounted lighting tasks, luxury retail displays, hospitality joinery, and bespoke furniture often demand a reflective, jewelry-grade metallic sheen. Standard 6063 contains trace iron impurities that leave a soft satin matte appearance after clear anodizing. For projects requiring a mirror-bright metallic trim alongside full thermal conductivity, 6463-T5 alloy solves the aesthetic dilemma by offering superior surface finish quality.

Formulated with strictly controlled iron content and balanced magnesium-silicon ratios, 6463-T5 responds exceptionally well to chemical bright dipping and electrophoresis treatments. It retains the thermal dissipation performance of the 6000-series family while polishing up to a crisp, specular finish that mimics chrome, brass, or champagne gold without peeling. The enhanced surface finish quality makes 6463-T5 the preferred choice when decorative appearance is as important as thermal function in visible lighting installations.

Wall Thickness and Internal Slot Geometry

Alloy selection only tells half the thermal story; cross-sectional mass dictates how much heat a profile can absorb and conduct before reaching thermal equilibrium. Ultra-thin commodity channels with minimal wall thickness offer less thermal mass and reduced surface area for heat dissipation compared to heavier-walled profiles. For higher-power LED strips, selecting profiles with adequate cross-sectional material ensures better thermal performance by providing more metal to conduct and radiate heat.

As shown in the axial profile view above, a well-engineered U-channel extrusion features crisp 90-degree square corners, uniform vertical flanges, and a thick, flat inner base with subtle longitudinal contact lines. The appropriate wall thickness depends on the LED strip’s thermal requirements and the profile’s complete cross-sectional design. Consult the LED strip manufacturer’s thermal management specifications and the profile manufacturer’s thermal performance data when selecting profiles for specific power densities. Simultaneously, vertical side walls increase the outer surface area exposed to ambient air, driving natural convective cooling. The actual thermal performance depends on the complete installation including mounting method and ventilation.

Architectural Form Factors and Application Scenarios

Modern linear lighting rarely sits bolted on top of a wall as an afterthought. Architects and interior designers treat the LED aluminium profile as an integral building material that frames spaces, divides textures, and conceals wiring inside structural millwork. The versatility of extruded aluminium channels allows them to serve multiple roles across diverse architectural applications, from decorative shadow reveals to functional task lighting.

Recessed Millwork, Cabinetry, and Panel Dividers

In bespoke cabinetry, wardrobe interiors, and feature walls, recessed U-channel profiles serve a dual purpose: they house low-glare task lighting and act as crisp shadow-line dividers between timber panels. Routing a precise groove into MDF or hardwood veneer allows a slim aluminium channel to sit completely flush with the surrounding woodwork. This integration creates clean architectural lines while maintaining functional lighting performance.

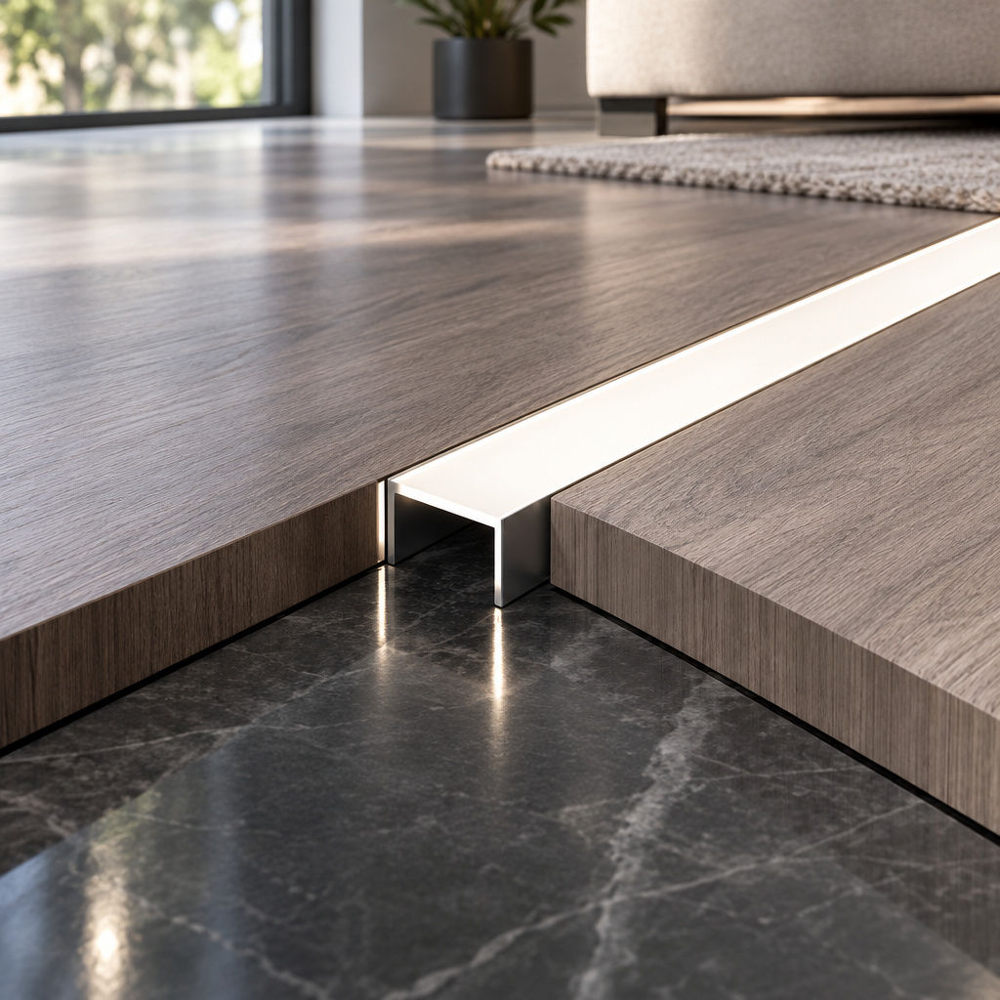

When installed between dark wood grain panels above a polished stone floor, a flush silver anodized U-channel creates a clean architectural reveal that breaks up heavy visual planes. Whether left open as a shadow gap or fitted with a recessed LED tape and frosted lens, the metal flanges protect the fragile cut edges of the wood veneer from chipping during cleaning or thermal seasonal movement. The profile acts as both a decorative transition and a protective edge detail.

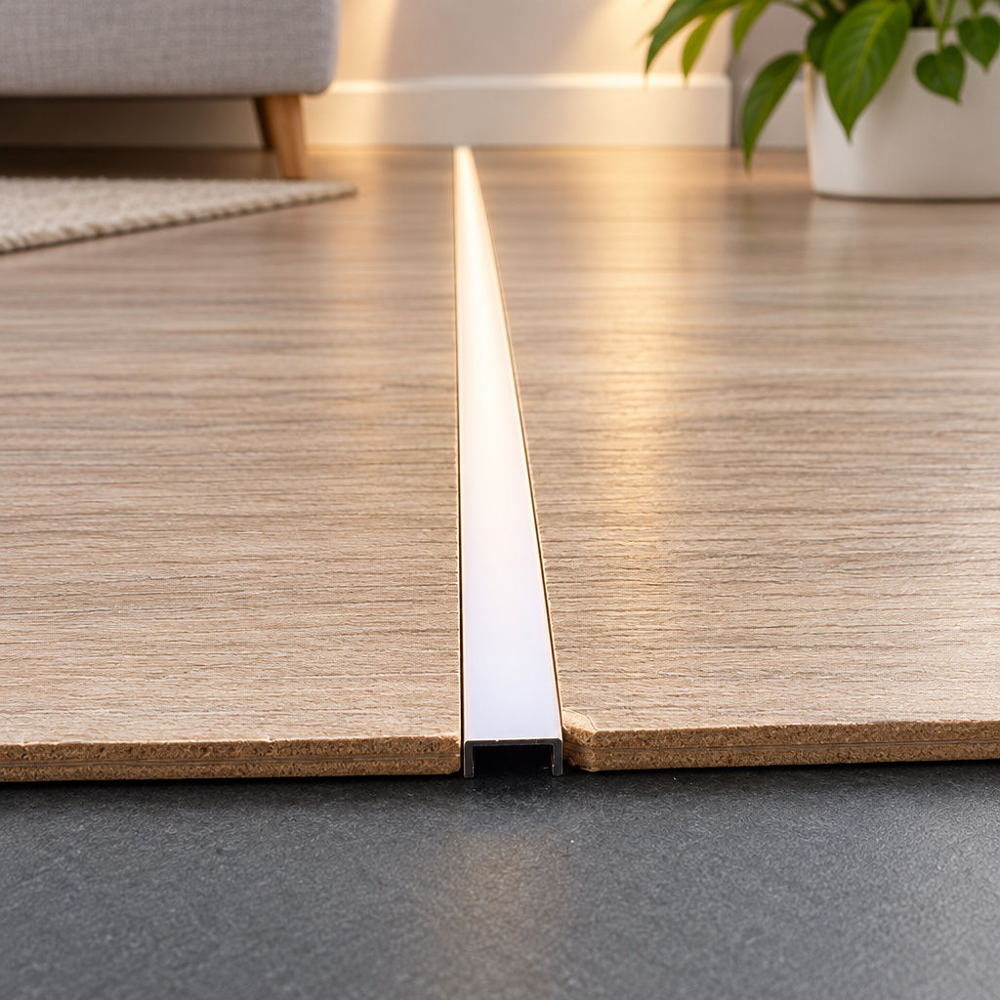

Looking at the cross-sectional transition between two light oak veneer boards, the dimensional tolerance of the extrusion becomes obvious. A high-precision channel fits tightly into the CNC-routed kerf without requiring messy silicone caulking or wide plaster-in mud flanges, allowing joiners to assemble modular wall panels rapidly on-site. The tight fit depends on accurate routing and profile dimensional consistency from the manufacturer.

Perimeter Skirting and Recessed Baseboard Profiles

Floor-level perimeter lighting has moved far beyond cinema aisles into residential hallways, hotel corridors, and contemporary commercial lobbies. Instead of mounting fragile plastic strips along the bottom of a wall where vacuum cleaners and foot traffic can damage them, designers specify heavy-duty aluminium channel profiles engineered as structural skirting baseboards. These profiles combine mechanical protection with integrated lighting capability.

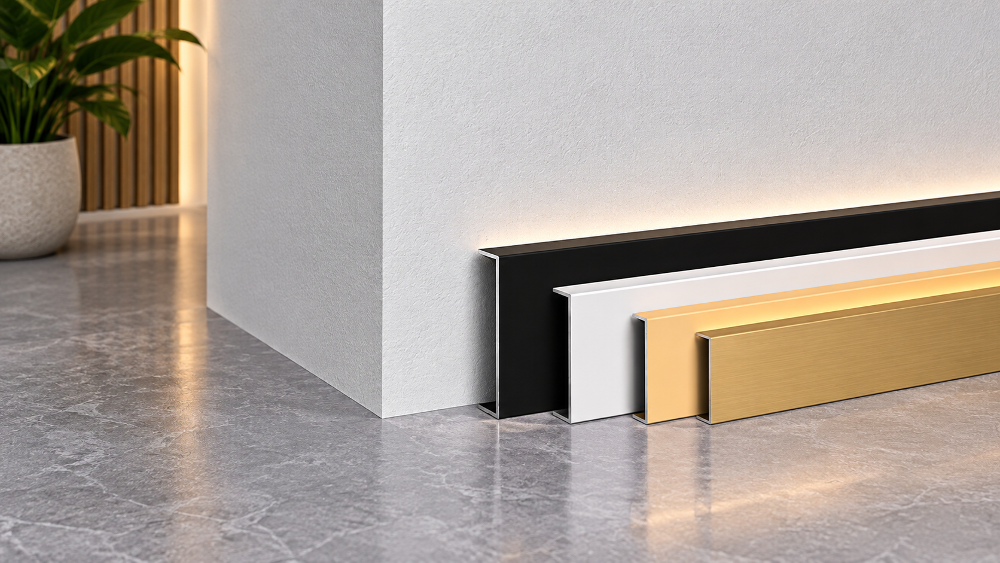

Nested aluminium channel profiles along an interior wall corner demonstrate how extrusion geometry adapts to perimeter junctions. Finished in matte black, clean white, warm peach, or brushed gold, these rigid sections shield the lower plaster wall from impact damage while providing recessed slots for indirect floor-washing LED strips or concealed low-voltage cable routing. The profiles serve both aesthetic and protective functions in high-traffic areas.

Louvered Ceiling Grids and Linear Baffle Systems

In large commercial atriums, open-plan offices, and covered outdoor pergolas, aluminium channel profiles scale up from small millwork trims into overhead ceiling grids. The lighter weight of extruded aluminium compared to cold-rolled steel framing can facilitate installation of expansive linear baffle arrays, though the structural capacity for any given span, connection method, and loading condition must be verified through project-specific engineering calculations. The building’s structural capacity and the actual profile design determine safe load limits.

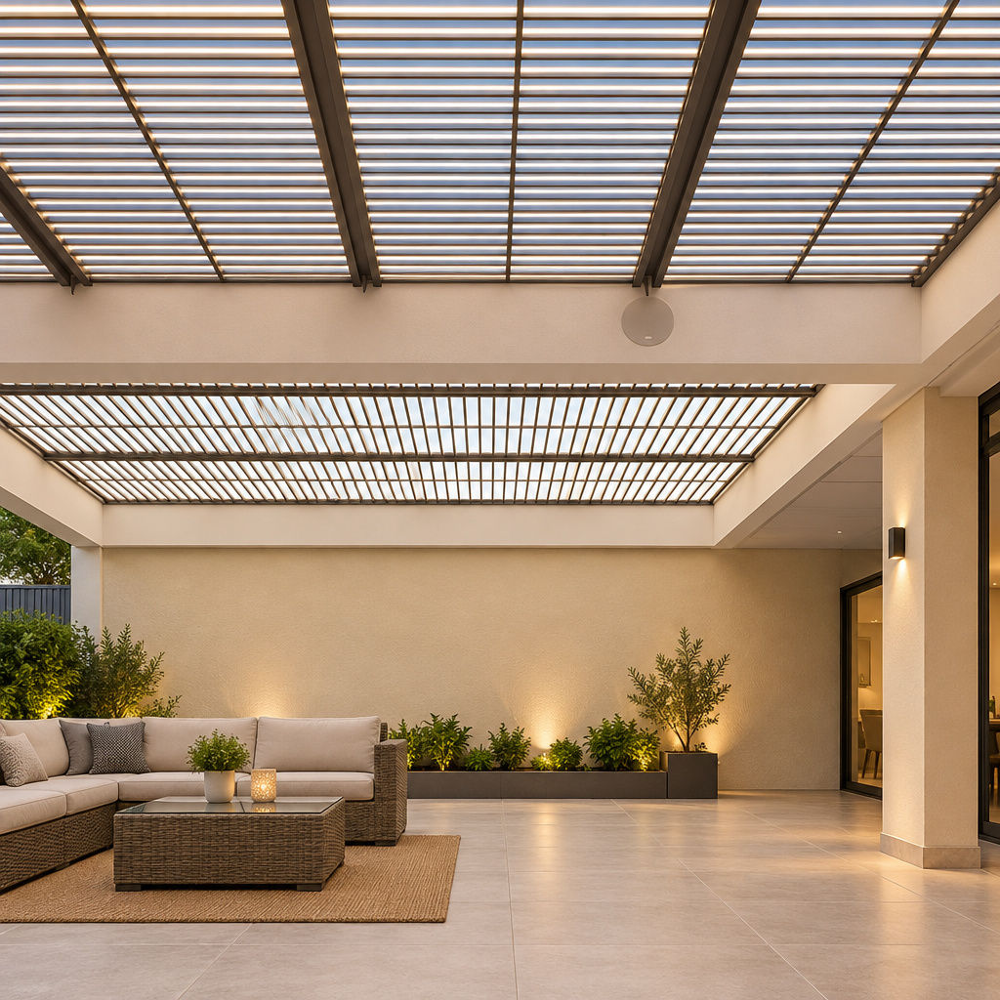

In an overhead louvered pergola screen, parallel rows of dark bronze aluminium channels span cleanly across white structural crossbeams. The hollow U-channel geometry conceals pre-wired lighting harnesses along the upper spine while accommodating linear LED modules that cast soft, downward architectural illumination beneath diffused skylights. The specific spanning capability depends on the profile’s cross-sectional properties and the design loads.

Surface Treatments and Optical Diffuser Pairing

Selecting the raw extrusion profile is only the first step in specifying a linear luminaire. The chemical surface treatment applied to the aluminium and the optical lens clipped into its mouth govern corrosion survival, surface durability, and light transmission. These finishing choices directly affect both the aesthetic integration and the functional performance of the lighting installation in the built environment.

Anodizing, Powder Coating, and Specialty Finishes

Surface treatments serve multiple purposes in LED lighting applications: they protect the aluminium from corrosion, provide decorative color options, and can influence the thermal radiative properties of the profile. Raw polished aluminium has low thermal emissivity, meaning it radiates infrared heat less efficiently than treated surfaces. Certain surface treatments may increase emissivity, though the overall impact on system thermal performance depends on the complete installation including profile geometry, mounting method, and ventilation. Surface treatments primarily serve corrosion protection and aesthetic functions.

To match diverse interior palettes and provide corrosion resistance, aluminium channel profiles are manufactured with various surface treatments:

• Satin Anodized and Brushed Finishes: Electrochemical anodizing grows a hard, integral aluminum oxide barrier in silver, matte black, rose copper, champagne gold, or brass yellow.
• Electrophoresis Coating: Combines anodizing with an electrophoretic resin film to produce a smooth, high-luster metallic surface.
• Architectural Powder Coating: Electrostatically applied and thermally cured polyester powders in custom RAL shades allow recessed channels to match various interior finishes.
• Wood Grain Heat Transfer: Sublimates realistic oak, walnut, or teak grain patterns directly into the coated metal surface.
• Fluorocarbon (PVDF) Coating: Available for exterior facades, coastal locations, and high-UV environments. Consult coating specifications and manufacturer testing data to verify suitability for specific environmental conditions.
• Raw Mill Finish: Economical uncoated extrusion that may be field-painted or used in hidden applications.

The specific performance characteristics of each treatment, including resistance to fingerprints, chemicals, or weathering, depend on the coating formulation and thickness. Verify coating performance with the manufacturer’s specifications for the intended application environment.

Matching Channel Depth with LED Pitch and Diffuser Opacity

Nothing ruins a minimalist linear light faster than visible diode hotspots glaring through a milky cover. Whether an installation achieves a continuous, dot-free line of light depends on multiple factors including the center-to-center spacing between adjacent LEDs on the strip (diode pitch), the internal height of the LED aluminium profile, the LED’s beam characteristics, the diffuser material and shape, and the viewing distance. All these variables interact to determine the final visual appearance.

As an initial selection guideline, allowing adequate distance between the LED chips and the diffuser lens helps blend individual light sources. The specific depth required varies by LED strip product, diffuser type, and application requirements. Manufacturers of LED strips and diffuser lenses typically provide optical performance data or sample installations to help specifiers verify whether a given combination will produce the desired appearance. When precise dot-free performance is critical, evaluating physical samples under actual installation conditions before final specification ensures the combination meets project expectations.

Specifiers typically consider several profile depth categories when matching them to LED strips:

• Shallow Profiles: Suitable for Chip-on-Board (COB) continuous phosphor strips or very high-density LED tape where individual light sources are closely spaced.
• Medium Architectural Channels: Accommodate standard-density LED strips when paired with appropriate diffuser materials.
• Deep Structural Profiles: Allow flexibility for lower-density LED strips while providing extra internal volume for low-voltage wire splices and connectors.

The optical trade-offs between diffuser materials also require consideration. Clear lenses provide minimal light loss but may show individual diodes, frosted lenses offer moderate diffusion with moderate transmission loss, and dense opal lenses provide maximum diffusion at the cost of greater light absorption. The actual transmission values depend on the specific lens product and should be verified with manufacturer data.

Step-by-Step Selection and Custom Specification Workflow

When sourcing linear lighting extrusions for commercial developments, hospitality fit-outs, or OEM fixture assembly, following a structured specification workflow prevents costly field retrofits. A methodical approach ensures that the selected LED aluminium profile matches both the mechanical dimensions and the thermal requirements of the LED strip system, avoiding compatibility issues during installation.

Calculating Thermal Load and Strip Width Compatibility

Before ordering extrusion sections, engineers must verify both mechanical clearance and thermal capacity using a sequential five-step verification process:

1. Measure True PCB and Connector Width: Confirm the exact width of the LED tape (commonly 5 mm, 8 mm, 10 mm, 12 mm, or 20 mm dual-row) and add 1.5 mm to 2.0 mm of internal slot clearance to accommodate solderless clip connectors or waterproof silicone sleeves.
2. Determine Linear Wattage Density: Check the rated electrical draw in watts per meter (W/m) from the LED strip manufacturer’s specifications. Higher power densities generate more heat and require profiles with greater thermal mass and surface area for effective heat dissipation.
3. Evaluate Ambient Ventilation: Consider the installation environment. Profiles buried inside unventilated drywall coves, insulated ceiling plenums, or sealed wooden cabinets have reduced convective cooling compared to surface-mounted or openly ventilated installations. Consult the LED strip manufacturer’s thermal design guidelines for mounting recommendations.
4. Select Alloy and Surface Treatment: Choose 6063-T5/T6 with anodizing or powder coating for general architectural durability, 6463-T5 for mirror-bright decorative trims, or fluorocarbon finishes for coastal exterior louvers and high-UV environments.
5. Verify Diffuser Optical Trade-offs: Account for optical losses in lighting calculations. Consult diffuser manufacturer data sheets for actual light transmission values, as these vary by material composition, thickness, and surface treatment. Physical mock-ups help confirm that the selected combination delivers the desired visual appearance.

Specifying Custom Extrusion Dies and Production Parameters

Standard off-the-shelf channels do not always fit specialized curtain wall mullions, acoustic baffle systems, or proprietary furniture joints. When a project requires bespoke dimensions, custom wall thicknesses, or modified internal slot positions, partnering directly with an integrated extrusion mill streamlines tooling and production. Custom extrusion allows precise matching to project-specific architectural details.

Established in 1998, Xinhe Aluminium brings more than 25 years of manufacturing experience across R&D, extrusion, and surface finishing, supplying over 5,000 profile designs and 200,000 tons of annual capacity to customers in more than 50 countries. For us, tailoring an aluminium channel profile means engineering exact slot widths, alloy tempers (6063-T5/T6 or 6463-T5), and custom lengths around your architectural blueprints with accessible minimum order quantities of 100 to 500 kg per section and standard delivery lead times of 10 to 20 days.

Common Installation Pitfalls and Field Troubleshooting

Even a well-specified LED aluminium profile can underperform if installers ignore thermal airflow or mechanical expansion dynamics during site assembly. Understanding common installation errors helps project teams avoid performance issues that compromise lighting quality and service life. Field troubleshooting often reveals that installation method significantly affects the final performance.

Preventing Thermal Bottlenecks in Enclosed Coves

A frequent mistake in luxury residential millwork occurs when carpenters route a tight groove into solid oak or MDF, press-fit an aluminium channel flush into the timber, and seal the back with construction adhesive. Because wood is a thermal insulator, only the narrow plastic diffuser face remains exposed to room air, potentially reducing convective heat dissipation. The thermal insulation from surrounding wood limits the profile’s ability to transfer heat to the ambient environment.

When recessing LED channels into timber or drywall, consider specifying profiles with thicker bottom flanges so heat conducts longitudinally along the full length of the bar. Where joinery details allow, routing a narrow relief air channel behind the base of the aluminium extrusion can improve thermal performance. Always follow the LED strip manufacturer’s installation guidelines regarding thermal management and mounting surface requirements. The manufacturer’s specifications typically define maximum ambient temperatures and required ventilation clearances.

Managing Thermal Expansion in Continuous Linear Runs

Longer continuous installations require attention to differential thermal expansion between metal and plastic components. Aluminium expands and contracts at a coefficient of linear thermal expansion of roughly 23 × 10^-6 m/(m·K), whereas polycarbonate and PMMA acrylic diffusers expand at roughly three times that rate (65 to 75 × 10^-6 m/(m·K)). This differential expansion can cause mechanical stress if not properly accommodated.

If installers butt plastic lenses tightly against each other during installation, the diffuser may expand when the LEDs reach operating temperature, potentially causing the cover to buckle or pop out of the retention grooves. Consult the diffuser and profile manufacturer’s installation instructions for recommended expansion gaps, which vary by material, profile design, expected temperature range, and installation length. Alternatively, offsetting the lens joints from the aluminium channel joints so the lens bridges the metal seam can help accommodate thermal movement and keep continuous linear runs straight and light-leak free.

Frequently Asked Questions About LED Aluminium Profiles

Do LED strip lights really need an aluminium profile?

The need for an LED aluminium profile depends on the LED strip’s power density, the installation environment, and the manufacturer’s thermal design requirements. Lower-power decorative accent strips may perform adequately on thermally conductive mounting surfaces for certain applications. However, higher-power architectural LED strips benefit from the thermal management, mechanical protection, and optical diffusion that a properly specified aluminium channel provides. Always consult the LED strip manufacturer’s installation guidelines regarding heat sink requirements, as these vary by product. An aluminium profile also offers mechanical protection, helps prevent adhesive failure, and provides optical control through integrated diffuser systems.

How deep should an LED aluminium profile be to avoid visible light dots?

Achieving a continuous, dot-free line of light depends on several factors including the LED strip’s diode spacing and beam characteristics, the diffuser material and shape, the internal profile geometry, and the viewing distance. As an initial guideline, greater distance between the LED chips and the diffuser lens tends to help blend individual light sources, but the specific depth required varies by product combination. Manufacturers of LED strips and diffuser lenses typically provide optical performance data or recommend compatible profile depths. When dot-free appearance is critical for a project, evaluating physical samples under actual installation conditions before final specification ensures the selected combination meets visual requirements.

Can LED aluminium profiles be cut and mitered on-site?

Yes, 6063-T5 and 6463-T5 extruded channels can be cut on-site using appropriate tools and techniques. Use a compound miter saw with a fine-tooth carbide blade suitable for non-ferrous metals and compatible with the saw diameter and profile dimensions. Cutting methods vary by profile design, diffuser material, and tooling; some installers pre-install diffusers before cutting while others cut components separately. Clamp pieces firmly and deburr cut aluminium edges before final assembly. Always wear appropriate safety equipment including eye protection when cutting metal, and follow both the tool manufacturer’s and the profile manufacturer’s cutting and installation instructions.

Does powder coating or black anodizing reduce the heat dissipation of an LED profile?

Surface treatments such as anodizing and powder coating can alter the surface radiative properties of aluminium, with certain finishes potentially increasing thermal emissivity compared to bare polished metal. However, the overall thermal performance of an LED lighting system depends on multiple factors including the profile’s cross-sectional mass, surface area, mounting method, ventilation, and the LED strip’s power density. The thin anodic layers or architectural powder coatings typically applied to aluminium profiles add minimal conductive resistance. For critical thermal applications, consult the profile manufacturer’s thermal testing data or the LED strip manufacturer’s heat sink specifications rather than relying on general surface finish assumptions.

What is the difference between 6063-T5 and 6463-T5 for LED channels?

Both 6063-T5 and 6463-T5 offer similar thermal conductivity and extrusion workability for LED heat sink channels. The primary difference lies in chemical purity for decorative finishing: 6063-T5 is the versatile standard for satin anodizing and powder coating, while 6463-T5 has lower iron content specifically engineered to achieve a bright, mirror-like specular finish after chemical polishing and anodizing. Projects requiring highly reflective, jewelry-grade metallic aesthetics benefit from 6463-T5, while standard architectural applications typically use 6063-T5 for its cost-effectiveness and broad surface treatment compatibility.

Conclusion: Building Longevity into Linear Lighting Systems

Treating an LED aluminium profile as a precision thermal and optical component rather than a simple decorative trim separates enduring architectural lighting from short-lived installations. When a properly specified 6063-T5 or 6463-T5 extruded aluminium channel provides effective heat dissipation, mechanical protection, and optical control through matched diffuser systems, the entire lighting installation can operate within design parameters and deliver reliable performance. Whether your next project calls for flush-mounted millwork dividers, durable perimeter skirting, or custom-engineered aluminium channel profiles for LED strip lighting across a commercial ceiling grid, selecting the appropriate alloy quality, wall thickness, and surface treatment based on the LED manufacturer’s thermal requirements and the project’s aesthetic goals ensures your linear illumination system performs as intended throughout its service life.
