Architectural Aluminium Profiles: Choosing the Right Angle Design for Framing and Trim

October 18, 2026
1

Architectural aluminium profiles sit at the intersection of structure and finish. They hold things together, but they also show. That dual job is harder than it sounds, and it’s why so many fabricators get stuck choosing between a profile that’s strong enough and one that actually looks right once installed.

Angle profiles are the simplest expression of that problem. A 90-degree extrusion seems like it should be a commodity part, interchangeable across suppliers. It isn’t, once you look closely at alloy choice, wall thickness, and finish quality.

Why the 90-Degree Angle Still Dominates Framing Work

Right angles are everywhere in construction because corners are everywhere. Door jambs, cabinet edges, tile boundaries, equipment housings — all of them need a clean transition where two surfaces meet.

An extruded aluminium angle solves that transition mechanically rather than through finishing labor. Instead of mitering wood or grinding a stone edge by hand, you fit a pre-formed metal corner and fasten it. The geometry does the work that a craftsman used to do with a chisel.

That said, not every angle profile holds its shape the same way under load. Thinner, poorly alloyed extrusions can bow slightly during installation, especially across longer runs. This is where alloy selection stops being a footnote and starts being the actual decision.

Alloy Selection: 6063 vs 6463 for Angle Profiles

Most architectural angle profiles are extruded from either 6063 or 6463 aluminium alloy, and the difference between them is not cosmetic branding. It’s a tradeoff between structural toughness and surface refinement.

Alloy	Typical Temper	Strength Characteristics	Surface Quality	Best Suited For
6063	T5 / T6	Good strength, standard structural use	Good finish, slightly less refined	Structural brackets, framing, general trim
6463	T5	Moderate strength	Excellent polish response, higher surface clarity	Decorative trim, anodized or bright finishes

6063-T6 is the workhorse. It takes load well and extrudes cleanly, which is why it shows up in window frames, door assemblies, and mounting brackets where corner stability actually matters structurally.

6463, by contrast, is chosen when the surface finish is the priority. It responds better to polishing and anodizing, so a tile edge trim that needs to catch light in a specific way often leans on 6463 rather than 6063. Neither alloy is "better" in isolation. The right one depends on whether the part is doing structural work or purely visual work.

Equal Leg vs Unequal Leg: A Decision, Not a Preference

One of the more overlooked choices in angle profile specification is leg symmetry. Equal-leg angles have two identical sides; unequal-leg angles have one longer leg and one shorter leg. The choice changes how the part behaves mechanically and visually.

Choose equal-leg angles when the profile needs to be visually symmetrical from either viewing direction, such as exposed interior corner guards.
Choose unequal-leg angles when one side needs to anchor into a deeper structural element while the other side stays thin for a cleaner face reveal.
For tile edging specifically, leg length should roughly match tile thickness so the profile sits flush rather than proud of the surface.
For equipment brackets, the longer leg typically carries the fastening holes, while the shorter leg provides clearance or a stop edge.

Getting this wrong doesn’t usually cause failure. It causes an awkward reveal line, a slightly visible gap, or screws sitting too close to an edge. Small misjudgment, but it’s the kind that’s obvious once the installation is finished and impossible to quietly fix.

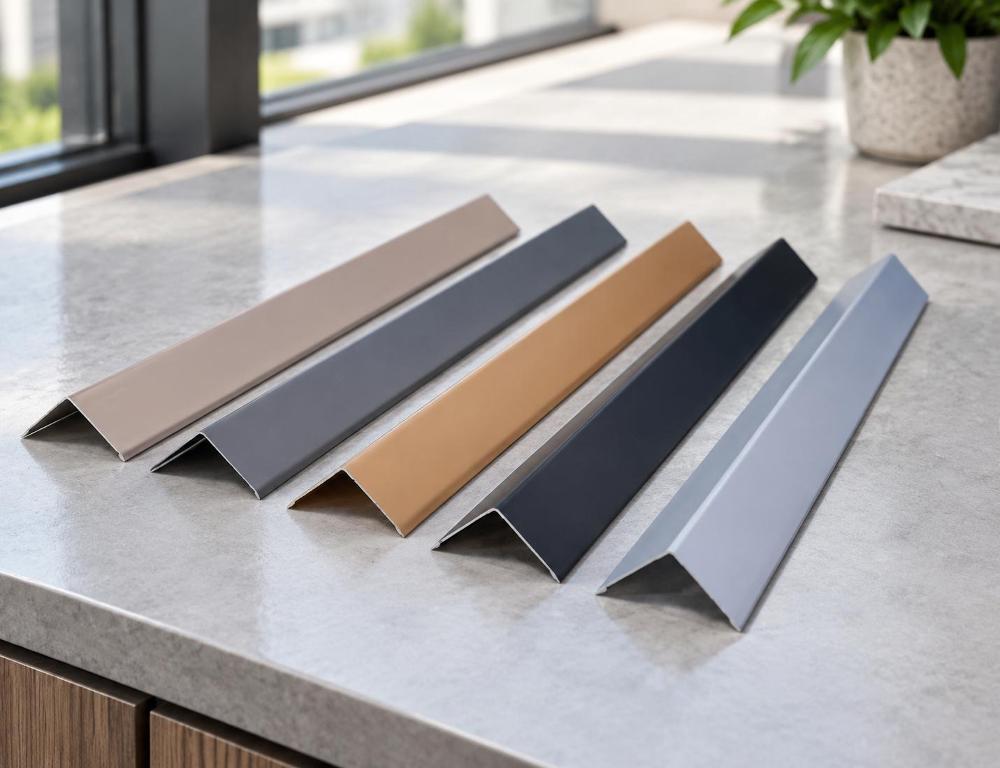

Aluminium angle profiles in multiple finishes arranged on a table

Surface Finish: Where the Design Decision Actually Lives

Here’s a point that gets underweighted in a lot of specification sheets: for an angle profile, the finish is often doing more visual work than the alloy or the dimensions combined. The geometry is simple. The surface is what a person actually registers walking past it.

Architectural angle profiles are typically available in:

Mill finish — raw extrusion surface, usually hidden behind other materials or used where cost matters more than appearance.
Anodized finish — an electrochemically formed oxide layer that improves corrosion resistance and gives a hard, consistent metallic look.
Electrophoresis coating — a clear or tinted protective layer applied through an electro-deposition process, often used for added surface protection with a smooth appearance.
Powder coating — a wide color range with a durable, slightly textured finish, common where the trim needs to match a painted wall or fixture.
Wood grain finish — a printed or transferred texture that mimics timber, used when designers want warmth without actual wood maintenance.
Fluorocarbon coating — a weather-resistant painted finish typically associated with exterior-grade performance.

A matte black anodized angle reads completely differently against marble than a brushed gold one does. Same geometry, same alloy family potentially, entirely different design statement. This is the part of profile selection that’s closer to interior design than structural engineering, and it deserves to be treated that way during specification, not as an afterthought once the structural decision is already locked.

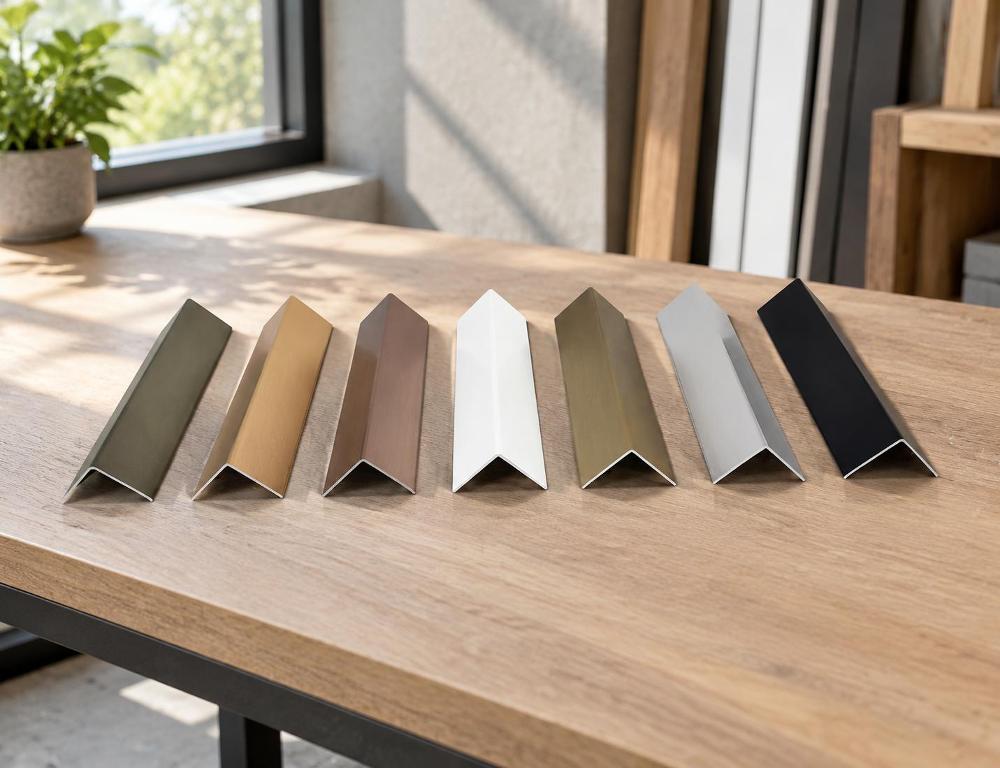

Lineup of aluminium angle profiles in dark bronze, brushed gold, and other finishes

Tile Edging: A Small Detail That Causes Big Complaints

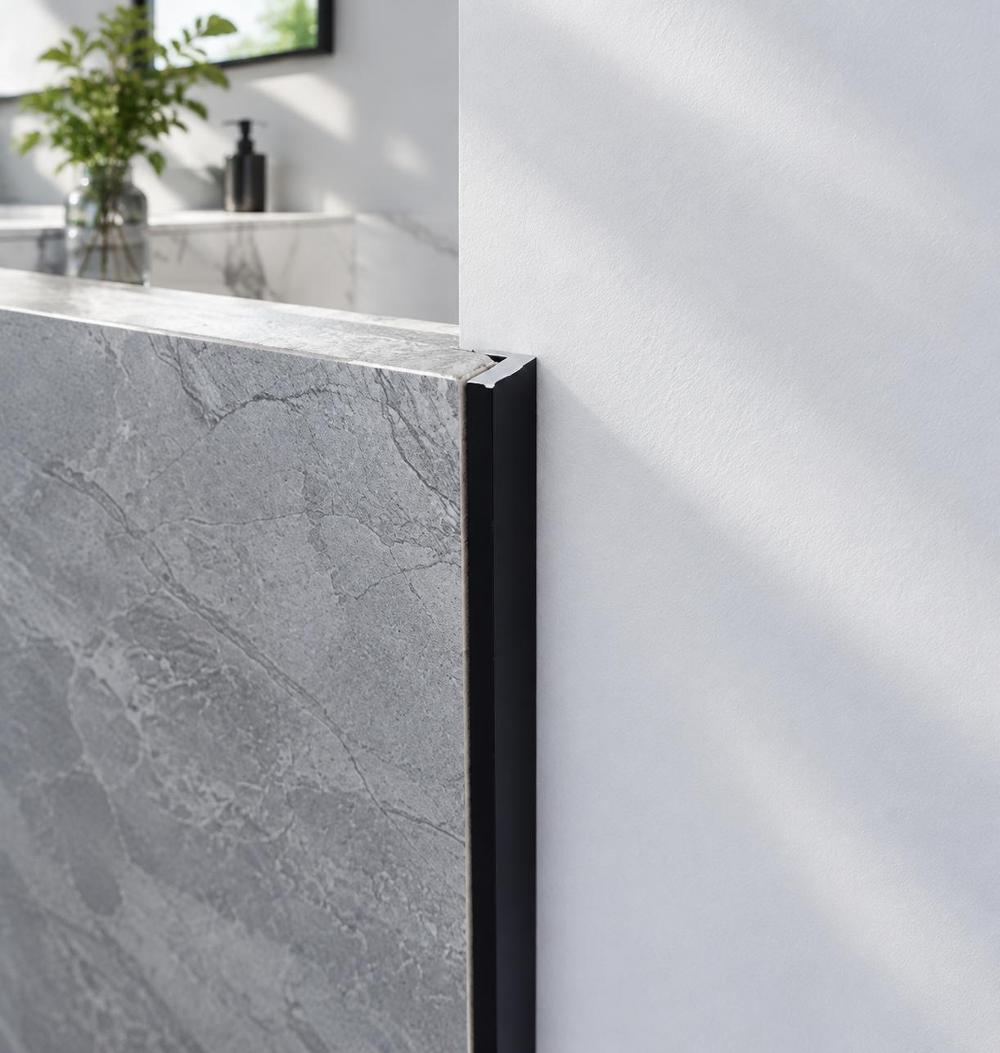

Tile edges are a quiet failure point in a lot of interior projects. Raw cut tile edges chip. They catch light unevenly. In wet areas, exposed porcelain edges can harbor grout residue that’s hard to clean. An aluminium angle profile addresses all three problems with one part.

Fitted along the tile’s exposed edge, the profile covers the raw cut, gives a consistent reflective or matte line depending on finish, and creates a hard barrier that resists chipping from cart wheels, dropped tools, or foot traffic at thresholds. This is a case where a profile usually associated with structural framing is doing almost entirely cosmetic and protective work instead.

The installation itself tends to be straightforward. Angle profiles described as easy to cut, drill, and machine fit into standard tile-setting workflows without specialized tools, which matters a lot on renovation jobs where schedule pressure is tight and a complicated trim detail just doesn’t get prioritized.

Corner Protection on Exterior and High-Traffic Surfaces

Move from tile to full wall corners and the logic shifts slightly. Here the angle profile is less about covering a cut edge and more about absorbing impact that would otherwise chip stone, marble, or painted drywall.

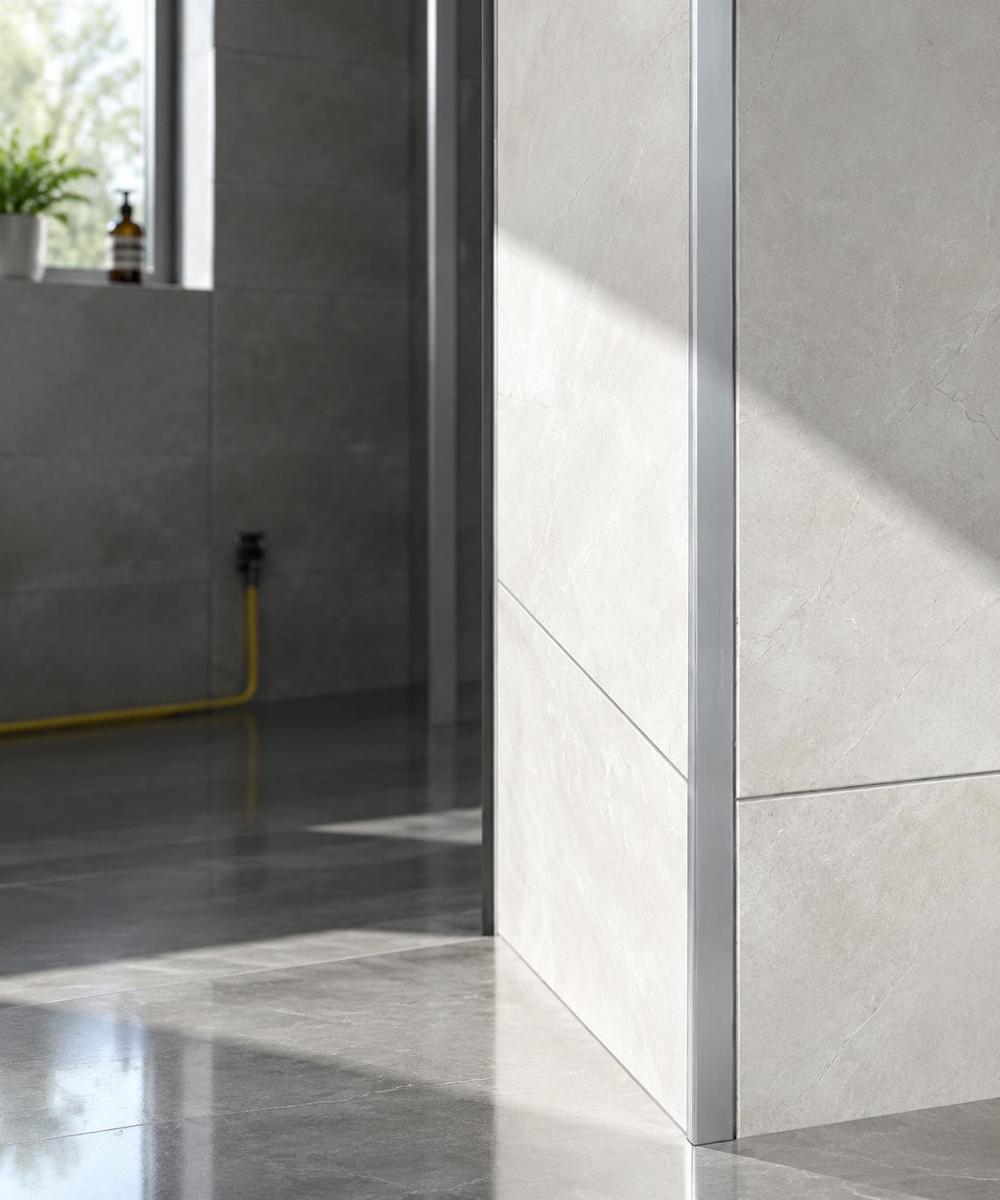

A silver anodized angle running along an external marble corner, for instance, does two things simultaneously. It gives the corner a defined, intentional edge line instead of a soft stone chamfer, and it takes the physical abuse that corners accumulate over years of foot traffic, furniture moves, and cart collisions. Marble doesn’t flex. Aluminium flexes very slightly under impact, and that small give is often what prevents chipping at the exact point where two expensive finished surfaces meet.

Joining Dissimilar Wall Panels Without an Awkward Seam

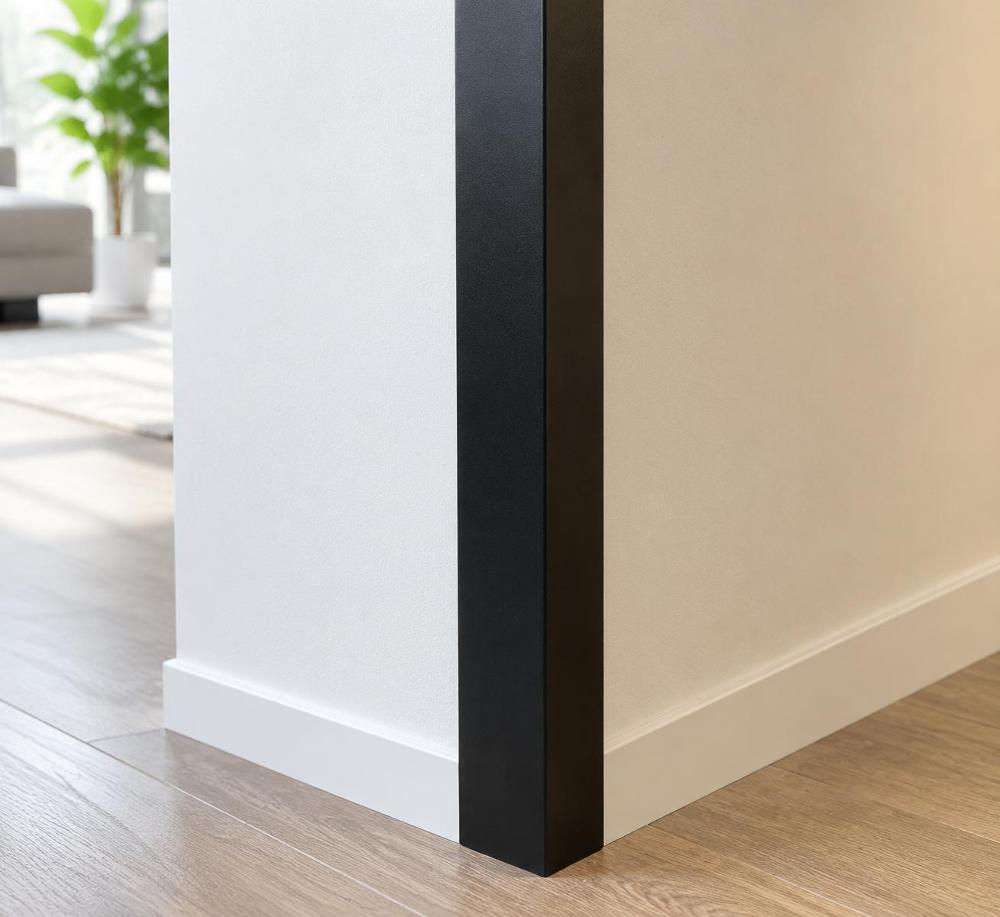

Angle profiles also solve a problem that has nothing to do with corners in the geometric sense: joining two different wall materials or colors along a straight vertical line. A white wall meeting a beige wall, for example, rarely looks intentional without something marking the transition.

A matte black angle profile set into that seam does the job a shadow line or a painter’s edge normally struggles with. It gives the eye a deliberate stopping point, which paradoxically makes the transition look more planned even though it’s a very simple mechanical fix.

Specifying Custom Dimensions and MOQ Expectations

Standard angle sizes cover a lot of ground, but architectural projects frequently need leg lengths or wall thicknesses that fall outside catalog defaults. Custom extrusion is normal in this category, not an exception.

Typical considerations when requesting a custom angle profile:

Minimum order quantities for custom sections generally run in the 100 to 500 kg per section range, which is modest compared to many other extrusion categories.
Lead times for custom runs typically fall between 10 and 20 days, depending on tooling and finish complexity.
Both equal and unequal leg configurations can be adjusted independently in length, width, and thickness.
Alloy and temper (6063-T5/T6 or 6463-T5) should be specified alongside dimensions, since finish compatibility depends on alloy choice.

Frequently Asked Questions

Does a thicker angle profile always mean a stronger corner?
Not necessarily. Wall thickness matters, but alloy and temper play an equally large role. A well-tempered 6063-T6 profile at moderate thickness can outperform a thicker but softer-alloy section under the same load.

Can anodized and powder-coated angle profiles be mixed on the same project?
Yes, and it’s fairly common when different areas need different durability levels — anodized for high-wear exterior corners, powder coating for interior trim that needs to match a specific paint color.

Is mill finish aluminium suitable for visible architectural trim?
Generally no. Mill finish is the untreated extrusion surface and is usually intended for applications where the profile will be hidden, painted later, or isn’t a focal design element.

How do I know whether I need equal or unequal leg angles?
It depends on what’s being covered or joined. If both visible faces need to match, go equal-leg. If one side needs to anchor into a thicker substrate while the other stays slim, unequal-leg is the practical choice.

Where This Leaves the Specification Process

Picking an angle profile is rarely about finding the strongest option on paper. It’s about matching alloy, leg configuration, and finish to a specific junction in a specific building, where the wrong choice shows up immediately and the right one disappears into the design.

For us at Xinhe Aluminium, that’s effectively the whole job description behind producing architectural aluminium profiles at scale: giving fabricators and designers enough configuration options — in alloy, geometry, and surface treatment — that the angle profile stops being a compromise and starts being the exact detail the project called for.
