Why Aluminium Curtain Walls Are Popular in Modern Architecture

August 29, 2026
12

Modern architecture places increasingly demanding requirements on building facades. Architects and developers want buildings that are visually striking, structurally reliable, energy-efficient, and capable of maintaining their appearance for many years. At the same time, construction projects need materials that can be precisely manufactured and adapted to different architectural designs.

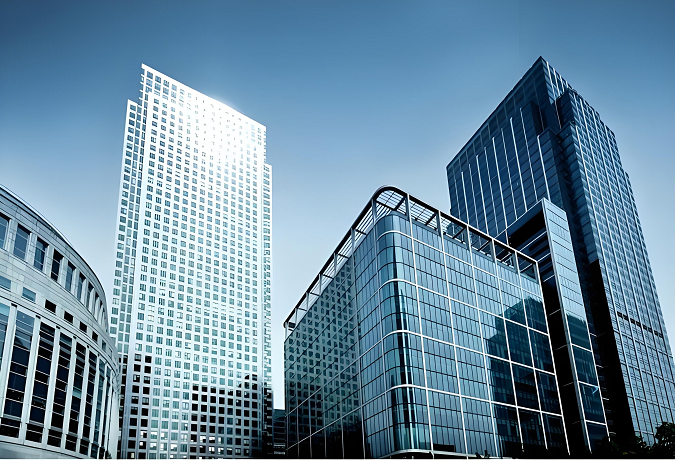

This is one of the main reasons aluminium curtain walls have become a popular choice for commercial buildings, office towers, residential developments, shopping centers, airports, hotels, and other modern structures.

Aluminium combines relatively low weight with good strength, corrosion resistance, design flexibility, and excellent extrudability. These properties allow aluminium curtain wall systems to support large glass panels and create clean architectural facades without adding unnecessary weight to the building structure.

What Are Aluminium Curtain Walls?

An aluminium curtain wall is a non-load-bearing exterior wall system that is typically supported by the building’s structural frame. Aluminium profiles form important components of the curtain wall, including vertical mullions and horizontal transoms, while glass, metal panels, stone, or other materials can be incorporated into the façade.

Unlike conventional masonry walls, a curtain wall generally does not carry the primary structural loads of the building. Instead, it is designed to resist environmental forces such as wind pressure and to transfer those loads safely to the building structure.

Aluminium is particularly suitable for this application because extrusion technology allows manufacturers to produce profiles with complex cross-sectional geometries. These profiles can be engineered to accommodate glazing, drainage channels, seals, thermal insulation components, fasteners, and other system elements.

Different curtain wall configurations are available depending on architectural and performance requirements. Common options include exposed-frame, semi-hidden-frame, hidden-frame, and unitized curtain wall systems.

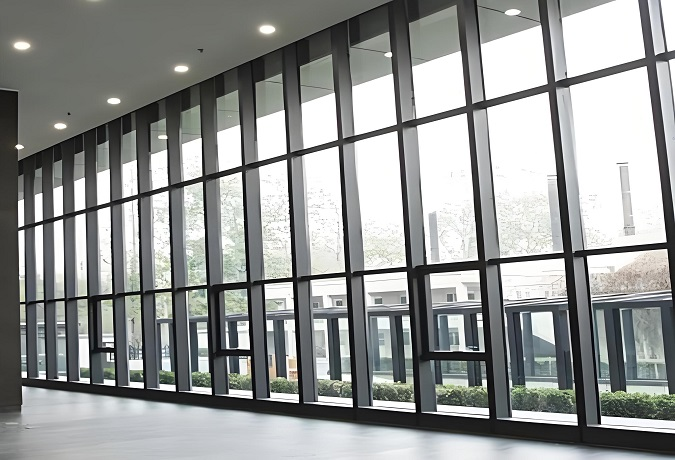

For example, Xinhe Aluminium’s exposed-frame glass curtain wall uses aluminium profiles as the structural frame and provides clearly defined vertical and horizontal lines. Its listed 160-series system uses 6063-T5/T6 aluminium alloy and supports anodized, electrophoretic, powder-coated, and fluorocarbon surface treatments.

Lightweight Construction Without Sacrificing Performance

One of the biggest advantages of aluminium curtain wall systems is their favorable strength-to-weight characteristics.

Aluminium has a density of approximately 2.7 g/cm³, which is considerably lower than steel. This relatively low density helps reduce the dead load associated with the façade system and can be particularly valuable in high-rise and large-scale construction.

Reducing façade weight can simplify structural coordination and make transportation and installation more manageable. At the same time, properly designed aluminium profiles can provide the structural performance required for curtain wall applications.

The geometry of an extruded profile is also important. Instead of simply increasing material thickness, engineers can use carefully designed cavities, ribs, and chambers to achieve the required stiffness while controlling material consumption.

This balance between weight, strength, and profile geometry is one of the reasons aluminium remains widely used for modern curtain wall construction.

Flexible Designs for Modern Architectural Facades

Modern architecture increasingly emphasizes large glazed areas, narrow sightlines, geometric forms, and customized façades. Aluminium extrusion is well suited to these requirements because the profile cross-section can be designed according to the needs of a particular curtain wall system.

Architects can select different mullion and transom dimensions, frame configurations, colors, and surface finishes to achieve different visual effects.

For example, a traditional exposed-frame curtain wall can emphasize the vertical and horizontal structure of a façade, while a hidden-frame system can create a cleaner and more continuous glass appearance.

Semi-hidden-frame systems provide another option by concealing selected frame components while retaining the structural characteristics of framed curtain walls. Xinhe Aluminium’s semi-hidden-frame curtain wall is designed for commercial, office, and high-rise applications and offers multiple profile dimensions and surface treatment options.

This design flexibility allows aluminium curtain walls to adapt to both functional requirements and architectural concepts.

Excellent Corrosion Resistance and Long-Term Durability

Building façades are constantly exposed to environmental conditions, including rain, humidity, sunlight, temperature changes, and atmospheric pollutants. Material durability is therefore an important consideration when selecting a curtain wall system.

Aluminium naturally forms a thin oxide layer on its surface, which provides a degree of protection against atmospheric corrosion. Additional surface treatments can further improve the appearance and durability of architectural aluminium profiles.

Depending on project requirements, aluminium curtain wall profiles can be anodized, electrophoretically coated, powder coated, or finished with fluorocarbon coatings.

These treatments provide architects and developers with a wide range of color and appearance options while helping the aluminium profiles withstand long-term environmental exposure.

Xinhe Aluminium offers several of these surface treatment options for its curtain wall systems, including anodizing, electrophoresis, powder coating, and fluorocarbon treatment.

For buildings expected to remain in service for decades, selecting an appropriate alloy, profile design, surface treatment, and maintenance strategy is essential.

Better Opportunities for Energy-Efficient Facade Design

Energy efficiency has become an increasingly important consideration in modern building design. A curtain wall is a major part of the building envelope, so its design can influence thermal performance, solar control, air tightness, and overall building energy consumption.

Aluminium itself has relatively high thermal conductivity, which means conventional aluminium frames can create thermal bridges if they are not properly designed. Modern curtain wall systems can address this issue through thermal breaks, insulated glazing, appropriate gaskets, and carefully designed frame assemblies.

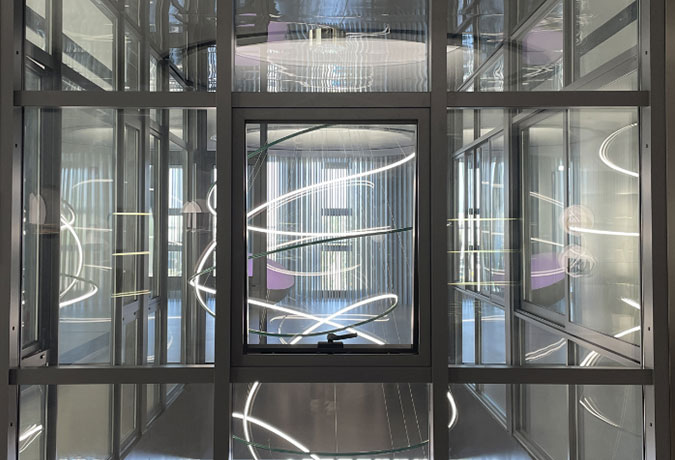

For example, Xinhe Aluminium’s insulated glass curtain wall systems combine aluminium profiles with insulated glass and insulation strips. The GMQ120 system uses 6063-T5/T6 aluminium profiles and includes a 14.8 mm insulation strip according to its published specifications.

The overall energy performance of a curtain wall depends on the complete façade system rather than the aluminium profile alone. Glass specification, frame design, thermal breaks, air sealing, shading, orientation, and installation quality all need to be considered together.

Aluminium Extrusion Enables Precise Profile Engineering

Another important reason for the popularity of aluminium curtain walls is the versatility of the extrusion process.

Aluminium extrusion allows manufacturers to produce long profiles with consistent cross-sectional dimensions. This makes it possible to incorporate functional features directly into the profile design, such as glazing rebates, drainage paths, screw channels, thermal-break interfaces, and connection areas. Profile geometry can also be optimized for different span lengths and loading conditions.

For architectural applications, alloys such as 6063 are widely used because they offer a good combination of extrudability, surface quality, corrosion resistance, and mechanical properties. Xinhe Aluminium identifies 6063 as a commonly used alloy for building doors, windows, curtain walls, and decorative profiles.

For projects with more demanding structural requirements, alloy selection should be based on engineering calculations and the applicable building standards rather than simply choosing a stronger alloy.

Multiple Surface Finishes Support Different Architectural Styles

The appearance of a curtain wall can have a major influence on a building’s identity. Aluminium profiles provide considerable freedom in surface finishing, allowing the same basic curtain wall concept to be adapted to different architectural styles.

Common finishes include:

Anodized finishes
Electrophoretic coatings
Powder coatings
Fluorocarbon coatings

Anodized aluminium can provide a durable metallic appearance, while powder coating offers a broad selection of colors and textures. Fluorocarbon coatings are also commonly considered for architectural façades where long-term exterior performance and color retention are important.

Xinhe Aluminium provides multiple surface treatment options for its architectural aluminium products, allowing customers to select finishes according to project requirements.The right finish should be selected according to factors such as climate, exposure conditions, desired appearance, maintenance requirements, and applicable project specifications.

Customization for Different Project Requirements

No two architectural projects are exactly the same. Curtain wall systems may need to accommodate different building heights, wind loads, glass specifications, visual requirements, installation methods, and local standards. For this reason, customization is an important advantage of aluminium extrusion.

A manufacturer can adjust profile dimensions, wall thickness, cross-sectional geometry, length, alloy, surface treatment, and machining requirements according to a project’s specifications.

Xinhe Aluminium provides customized aluminium profile services based on requirements such as dimensions and surface treatment. Its curtain wall products also state that customization can include parameters such as length, width, and thickness.

For project-specific curtain walls, customization should be based on engineering requirements and coordinated with the complete façade system rather than treated as a purely cosmetic adjustment.

Conclusion

The popularity of aluminium curtain walls in modern architecture comes from a combination of material performance and design flexibility.

Aluminium offers a useful balance of low weight, strength, corrosion resistance, extrudability, and surface-finish options. These characteristics make it suitable for curtain wall systems that need to support large glazed areas while meeting demanding architectural and engineering requirements.

For projects requiring reliable architectural aluminium profiles and customized curtain wall solutions, Xinhe Aluminium combines aluminium extrusion manufacturing experience with a broad product range and international supply capability.

If you are planning a new curtain wall project and need customized aluminium profiles, system specifications, or surface treatment options, Xinhe Aluminium can provide solutions based on your project’s dimensions, design, and performance requirements.
