Structural Integrity in Modular Design: Engineering T-Slot Aluminium Extrusion Profiles

September 10, 2026
2

Traditional steel infrastructure often forces facility managers into a rigid operational corner. Fabricating load-bearing structures traditionally requires permanent welding, rigorous safety protocols, and subsequent surface grinding. Any layout modification forces engineers to cut metal and start the fabrication cycle over.

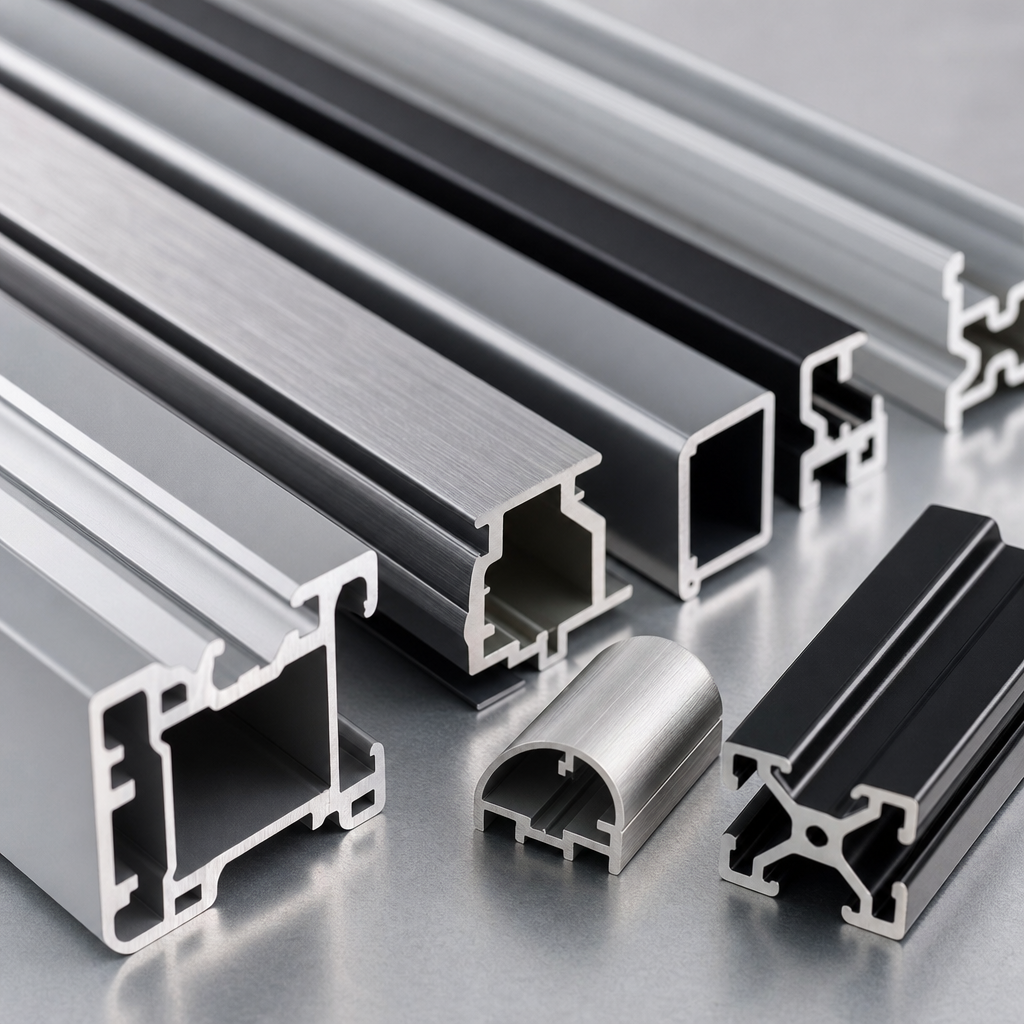

Industrial scaling demands mechanical adaptability without sacrificing structural rigidity. This exact friction is where modular components fundamentally change the engineering calculation. Utilizing precision-machined aluminium extrusion profiles offers a construction system that bypasses permanent thermal joining entirely. By replacing welded seams with geometric mechanical locking mechanisms, facilities can deploy heavy-duty machine frames rapidly.

The Physics of Weldless Mechanical Locking

The foundational principle of modular T-slot extrusions lies in the geometric isolation of tension. It functions similarly to a macroscopic industrial erector set but engineered for high-moment capacities. When mechanical clamping forces are applied to a captive T-nut, the tension distributes evenly across the internal parallel shelves of the slot.

This geometric load distribution offers distinct structural advantages over traditional metal fabrication:

Rapid reconfiguration of framework nodes without destructive cutting.
Complete elimination of heat-affected zones that weaken metal during welding.
Instant integration with standard mechanical fasteners and specialized angle brackets.

Instead of relying on the manual skill of a welder, joint integrity relies on calculable torque values. Heavy-duty corner brackets lock the intersecting profiles at exact perpendicular angles. This multi-directional intersection creates a highly rigid node capable of resisting significant lateral deflection under operational stress.

Metallurgical Logic in Load-Bearing Frameworks

Many facility designers mistakenly assume all architectural and structural metals possess roughly identical yield strengths. The structural reality of any framework hinges entirely on thermal processing and specific alloy composition. Magnesium and silicon are the primary alloying elements that dictate the physical rigidity of 6000-series metals.

For standard assembly line conveyor supports, a 6063-T5 alloy provides an optimal structural balance. It delivers an excellent surface finish while maintaining sufficient tensile strength for static loads. However, dynamic automation equipment structures frequently demand higher mechanical limits.

Engineers specifying frames for robotic cells usually pivot to a 6061-T6 specification. The T6 temper designation indicates the material has undergone artificial aging. This controlled thermal process maximizes the yield strength, enabling the metal frame to absorb dynamic kinetic forces without permanent deformation.

Surface Treatments as Environmental Defenses

Industrial surface finishes are rarely applied merely for cosmetic alignment. They function as critical physical barriers against galvanic corrosion and environmental degradation. Unprotected metals operating in humid environments or near aggressive machining fluids deteriorate rapidly over continuous operational cycles.

The anodizing process electrochemically thickens the natural protective oxide layer on the metal surface. This resulting microscopic porous structure permanently seals the core material. It creates a robust shield against harsh factory environments without altering the precise dimensional tolerances of the T-slot geometry.

When specialized chemical resistance is required, electrophoresis or fluorocarbon coatings become necessary. These advanced barriers protect the underlying structure from alkaline cleaning agents or synthetic cutting lubricants often present in heavy manufacturing zones.

Structural Demands in Automation Layouts

Different factory environments dictate vastly different physical requirements for modular framing. Modern production line frameworks endure continuous vibrational stress and lateral torque. Facility designers must account for not just the static mass of the equipment, but the kinetic energy transferred through the chassis.

Selecting the correct cross-sectional geometry dictates the success of specific industrial applications:

Industrial machine bases requiring high mass and resistance to torsion.
Protective safety fence enclosures needing rapid assembly and impact resistance.
Ergonomic inspection tables demanding precise modular shelving integration.

The physical volume of the profile’s internal webbing determines its moment of inertia. Thicker internal webs directly translate to reduced deflection over long unsupported spans.

Core Technical Specifications

For us, supporting global industrial deployments means maintaining strict dimensional and metallurgical consistency across all production batches. Predictable material behavior is non-negotiable for structural engineering. Below are the standard baseline parameters guiding these industrial deployments.

Parameter	Technical Specification
Structural Alloys	6063-T5/T6, 6060-T6, 6061-T6
Surface Defense	Mill finish, anodized, electrophoresis, powder coated
Customization Scope	Length, width, wall thickness, internal cross-section
Production Lead Time	10 to 20 days standard
Minimum Order Volume	100 to 500 kgs per section

Resolving Engineering Misconceptions

Do mechanical fasteners in T-slots loosen under continuous machine vibration?
Vibration-induced loosening is a highly valid engineering concern in robotics and automation layouts. Designers solve this by utilizing spring-loaded T-nuts and specialized locking washers. Properly torqued high-tensile steel fasteners combined with thread-locking fluid provide immense, vibration-resistant joint stiffness.

Can T-slot profiles replace structural steel in extreme load scenarios?
This depends entirely on load distribution and acceptable deflection limits. Aluminium inherently features a lower modulus of elasticity compared to structural steel. Deflection will manifest earlier under identical unsupported spans. Engineers compensate by specifying profiles with larger cross-sectional areas and denser internal support webbing.

Modern facility architecture relies fundamentally on predictable material physics and rapid physical adaptability. Static, inflexible infrastructure frequently creates severe operational bottlenecks during factory layout transitions or major machinery upgrades. The deliberate integration of modular t-slot aluminium extrusion profiles directly eliminates this engineering friction.

It transforms complex structural fabrication from a specialized, labor-intensive trade into a highly standardized mechanical assembly process. Identifying the correct alloy temper, internal slot geometry, and electrochemical surface barrier dictates the long-term reliability of any industrial framework. Rigorous engineering of these aluminium extrusion profiles ultimately determines exactly how effectively and safely a manufacturing operation can scale.
