The advantages of using aluminum profiles for door and window frames

March 21, 2026
71

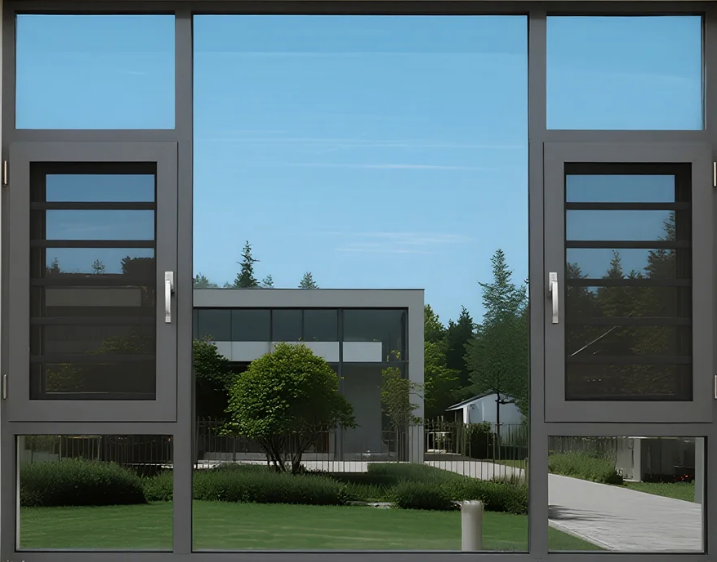

Using aluminium profiles to make window and door frames has become an absolute mainstream choice in modern architecture. Whether it is residential buildings, commercial buildings or public facilities, aluminium windows and doors are widely adopted due to their outstanding comprehensive performance.

The core benefits of using aluminium profiles for door and window frames can be summarized into four main aspects:

I. Performance and Durability

1. High Strength, Resistant to Deformation

Aluminum profiles (especially in the 6063-T5/T6 state) have high strength and rigidity, and can withstand large wind pressures, impacts, and their own weight.

Compared with plastic steel and wood materials, this type of material is less likely to bend, sag or deform over a long period of use, ensuring smooth opening of the doors and windows and long-lasting sealing.

2. Excellent corrosion resistance

The aluminum surface naturally forms a dense oxide film. After undergoing surface treatments such as anodizing, electrocoating, or powder spraying, it possesses extremely strong corrosion resistance.

Never rusts, especially suitable for coastal areas, humid environments (such as bathrooms and kitchens) or areas with frequent acid rain.

3. Extremely long service life

The high-quality aluminum door and window frames can last for over 50 years under normal usage conditions, which is in line with the lifespan of the building structure. This is much longer than that of plastic-steel (about 15-25 years) and ordinary wood (requiring regular maintenance).

II. Energy Saving and Comfort (Break-Bridge Aluminum Technology)

4. Outstanding Heat Insulation and Thermal Preservation Performance

By adopting the “Break-Bridge Aluminum” technology: A high-strength heat insulation strip (typically made of PA66 nylon) is inserted in the middle of the aluminum profile, physically separating the inner and outer aluminum frames, effectively blocking heat conduction.

Combined with insulating glass (such as Low-E glass) and sealing systems, the overall thermal insulation performance (K value) of the entire window can be significantly improved, achieving warm in winter and cool in summer, and reducing energy consumption for air conditioning and heating.

5. Excellent sealing performance

The aluminum profiles are equipped with multiple sealing designs and high-quality EPDM or silicone rubber sealing strips, achieving outstanding:

Air tightness: Prevents cold air from penetrating, saves energy and provides insulation.

Water tightness: Effectively prevents rainwater from seeping in.

Sound insulation: Significantly reduces outdoor noise, creating a quiet indoor environment.

6. Fire Safety

Aluminum is an non-combustible material with a melting point of approximately 660°C, meeting the requirements of building fire safety regulations. However, plastic-steel (PVC) is prone to combustion when exposed to fire and releases toxic gases, while wood burns directly.

III. Aesthetics and Design Flexibility

7. Slim Frame, Broad Field of Vision

The high strength of aluminum enables designers to adopt extremely narrow frame designs, maximizing the glass area and reducing visual obstruction. This results in better indoor lighting and landscape views, giving a highly modern appearance.

8. Rich surface treatments and colors

Aluminum profiles can achieve various surface effects:

Anodizing: It presents a metallic texture and comes in various colors such as silver-white, champagne, bronze, and black.

Powder coating: It can achieve any RAL color, with matte, glossy, or textured finishes.

Wood grain transfer: It perfectly replicates the texture of wood, combining the durability of aluminum with the natural warmth of wood.

The color is stable and resistant to ultraviolet rays. It will not fade or powder over time when used for a long period.

9. Powerful shaping capabilities

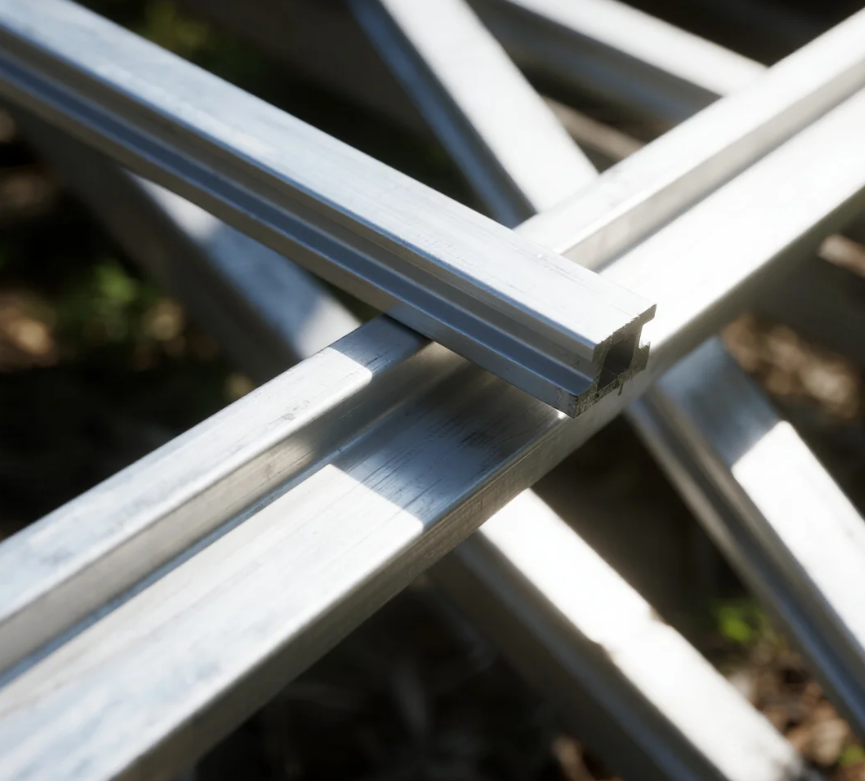

Aluminum profiles, through the extrusion process, can be produced with various designs such as complex cross-sections, arcs, and irregular shapes, meeting the needs of personalized architecture and enabling creative shaping.

IV. Usage and Maintenance

10. Extremely low maintenance costs

The aluminum window frame requires almost no maintenance: there is no need to apply paint for anti-corrosion as in wood, nor is there any concern about rust as in steel.

Daily cleaning can be done simply by wiping with a damp cloth. The surface is not prone to dirt and remains as good as new for a long time.

11. Lightweight and high-strength, with convenient installation

The density of aluminum is approximately one-third that of steel. It is lightweight, making it easy to handle and install, thereby reducing construction difficulty and labor costs.

With standardized system design, precise processing in the factory, and on-site assembly, it features high precision and short construction period.

12. Environmentally friendly and recyclable

Aluminum is 100% recyclable and reusable. The energy consumption for recycling and remelting is only 5% of that required for the production of new aluminum, which is in line with the concepts of green buildings and sustainable development.

Summary

The core advantage of using aluminum profiles for door and window frames (especially the insulated aluminum system) lies in:

The physical properties of “high strength, long lifespan, and maintenance-free” are perfectly combined with the aesthetic and functional requirements of “extremely narrow bezels, rich colors, and good heat insulation”.

If you are shopping for doors and windows, please pay attention to the following points:

Profile wall thickness: According to national standards, it should be ≥ 1.8mm (for the main load-bearing area).

Insulation strip material: Preferentially PA66 nylon (rather than PVC), with brands such as Teno Wind.

Hardware system: High-quality hardware ensures the durability and operation feel of doors and windows.

Sealant material: Choose EPDM or silicone rubber, which has better aging resistance.

Glass configuration: Choose between double-glazed, triple-pane with two cavities, or Low-E glass as per your requirements.

Overall, although the initial investment of high-quality aluminum window frames is slightly higher than that of ordinary products, their long-term overall value (durability, energy efficiency, maintenance-free) is incomparable to those of other materials.
