Advantages of Using Aluminum Decking

The core advantages of using aluminum decking (especially for marine and offshore environments) can be summarized as: achieving excellent corrosion resistance and extremely low maintenance costs while significantly reducing weight, thereby enhancing vessel performance and extending its lifecycle value.

The following is a detailed analysis of the main benefits of aluminum decking:

I. Core Performance Advantages

1. Significant Lightweighting, Enhancing Vessel Performance

Weight reduction of approximately one-third: The density of aluminum is about 2.7 g/cm³, which is only about one-third that of steel (about 7.8 g/cm³).

Increased payload capacity: The reduced structural weight can be directly converted into greater cargo capacity or passenger capacity, or more equipment and functions can be added to the vessel without increasing the total weight.

Improved speed and fuel efficiency: With a lighter hull, navigation resistance is reduced, enabling higher speeds and better fuel economy, which is particularly important for high-speed vessels and patrol boats.

Enhanced stability and maneuverability: Especially when aluminum superstructures and decks are used at higher positions on the vessel, they can significantly lower the ship’s center of gravity, improve navigation stability, and make the vessel’s handling more responsive.

2. Excellent Corrosion Resistance, Designed for Marine Environments

Natural rust prevention: A dense oxide film naturally forms on the aluminum surface, effectively protecting against erosion from seawater and marine atmospheres, preventing rust permanently.

Marine-grade specialized alloys: The aluminum alloys used for decking are not ordinary aluminum alloys, but specialized alloys such as 5083, 5052, and 6061. Particularly the ‘marine-grade’ conditions like 5052-H116/H321 have undergone special stabilization treatment to resist more severe exfoliation corrosion and stress corrosion cracking, which is incomparable to ordinary aluminum alloys or steel.

No complex coatings required: Steel requires expensive anti-rust primers and regular maintenance, while aluminum decking in most cases requires no painting, and even if the coating is damaged, it will not cause continuous corrosion of the base material.

3. High Strength and Good Toughness, Ensuring Structural Safety

Strength comparable to steel: Heat-treated aluminum-magnesium alloys (such as 5083-T6 condition) can achieve tensile strengths of 275-350 MPa, sufficient to meet the load-bearing and structural requirements of ship decks.

Excellent fatigue resistance: Aluminum decking can effectively withstand continuous impact from waves during navigation, vibrations from equipment operation, and cyclic loads from personnel movement, ensuring structural integrity for long-term use.

II. Safety and Functional Advantages

4. Integrated Anti-Slip Performance

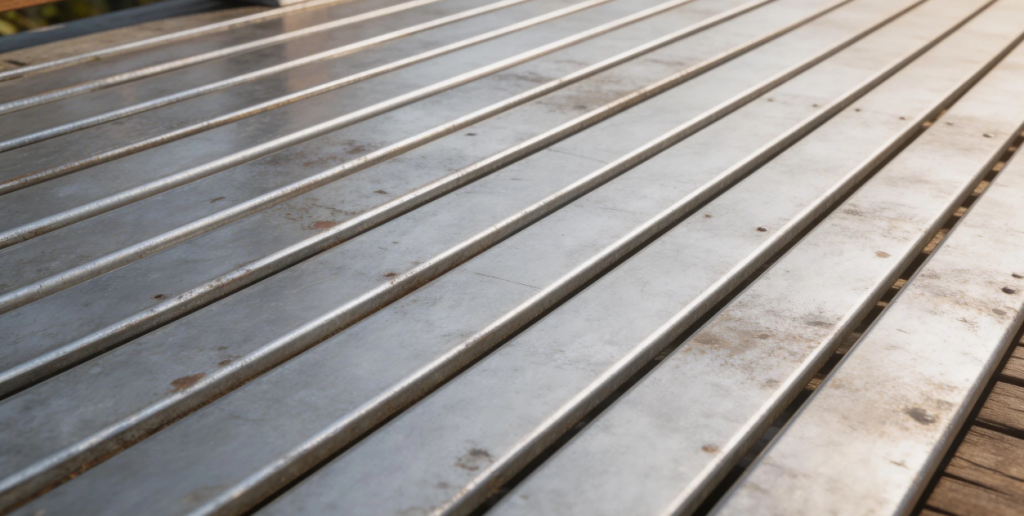

Aluminum decking often uses checkered plate form, with raised diamond or bar patterns on the surface.

This integrally formed anti-slip surface is permanent and will not wear off like coatings, providing reliable safety assurance for crew walking on wet, swaying decks.

5. Excellent Low-Temperature Toughness

Unlike certain steels that become brittle at low temperatures, aluminum alloys (such as 5083) can still maintain good toughness and impact resistance at extremely low temperatures, making them ideal materials for decks and storage tanks of Liquefied Natural Gas (LNG) carriers and other applications in low-temperature environments.

6. Spark-Free and Non-Magnetic

Aluminum does not generate sparks upon impact, a characteristic that is crucial for vessels carrying flammable and explosive materials (such as oil tankers and chemical ships) or operating in hazardous areas such as offshore oil and gas platforms.

At the same time, aluminum’s non-magnetic characteristic also makes it suitable for equipment platforms sensitive to magnetic fields, such as minesweepers or certain research vessels.

III. Economic and Environmental Advantages

7. Extremely Low Maintenance Costs

‘Install and forget’: Due to the excellent corrosion resistance of aluminum decking, daily maintenance requirements are very low, eliminating the need for regular expensive derusting and repainting like steel decking.

Lower long-term costs: Although the initial material cost of aluminum decking may be higher than ordinary steel, from the perspective of the vessel’s full lifecycle cost, its saved fuel consumption, increased cargo value, and reduced maintenance expenses make its overall cost more advantageous.

8. Easy Processing and Construction

Aluminum has good workability, is easy to cut, drill, and bend, and can be customized according to complex hull lines and deck layouts.

Its excellent welding performance (such as with 5083 alloy) also ensures the strength and sealing of deck joints, simplifying construction processes.

9. Environmentally Friendly, 100% Recyclable

Aluminum is a high-value material that can be recycled indefinitely, with the energy consumption of recycling and remelting being only 5% of primary aluminum production. Using aluminum decking meets the growing requirements for sustainable development in modern shipbuilding industry.

Summary

Using aluminum decking is a wise investment focused on high performance, high safety, and low maintenance. It perfectly balances the contradiction between structural strength and vessel lightweighting, while solving the biggest challenge in marine environments with excellent corrosion resistance. Whether it’s racing boats pursuing speed, demanding warships, or merchant ships requiring economical operation, aluminum decking can provide comprehensive value that surpasses traditional materials.
