Architectural and Industrial Aluminium Angle Profile Guide: Structural Sizing, Alloy Selection, and

October 23, 2026
2

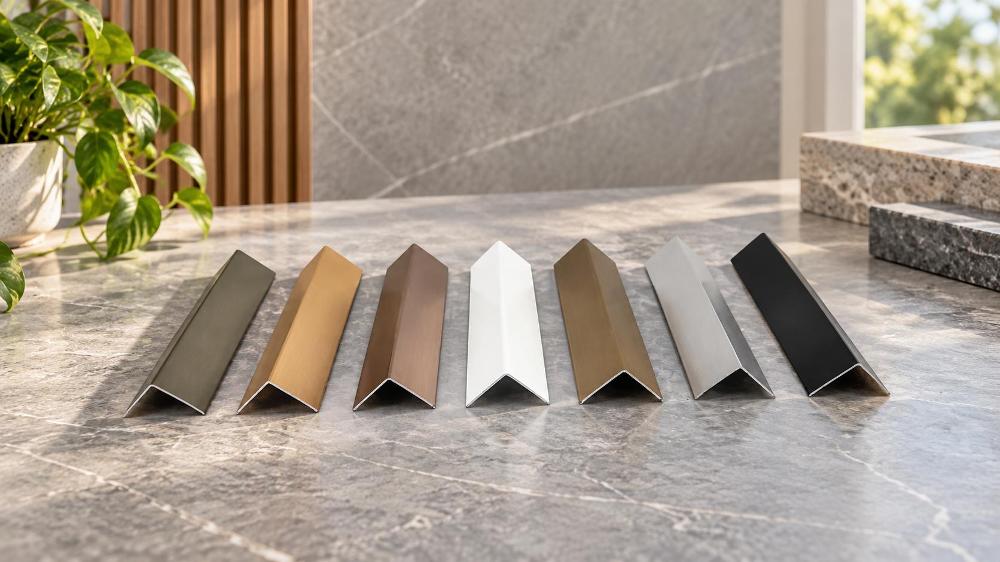

Frontal horizontal lineup shot featuring seven aluminium angle profiles resting side-by-side on a neutral grey background

Selecting the right aluminium angle profile requires balancing structural load capacities, spatial geometry, and environmental protection across demanding architectural or industrial environments. An aluminium angle profile serves as an indispensable building block, functioning equally well as a crisp edge guard, a rigid internal bracket, or an exterior perimeter stiffener. Engineers and contractors routinely encounter assembly misalignment, surface oxidation, or structural deflection when cross-sections and alloys are poorly matched to real-world loads.

This technical guide examines how geometry, metallurgical tempers, and modern surface technologies interact, providing actionable criteria to optimize every installation. Readers evaluating an aluminium angle profile for a specific project will find practical guidance on leg configuration, alloy and temper selection, surface finish options, and sourcing considerations throughout the sections that follow.

Geometric Configurations: Equal vs. Unequal Aluminium Angle Profiles

Cross-sectional geometry directly dictates how an extruded angle responds to torsional stresses, bending moments, and localized mechanical connections. While a simple right-angle profile appears straightforward, subtle dimensional variations between its two legs fundamentally shift its mechanical behavior. Choosing between equal and unequal geometries determines fastener clearance margins, assembly stiffness, and whether dead weight can be eliminated without compromising load thresholds.

Equal Leg Geometry: Symmetrical Load Distribution and Right-Angle Framing

Equal leg profiles feature two identical flanges oriented at precisely ninety degrees, providing geometric symmetry. This symmetry allows for identical contact widths on both mating surfaces, simplifying connection design in symmetrical perimeter framing. Designers should use the calculated section properties for the actual profile cross-section and loading direction when performing structural analysis.

In standard corner reinforcement, equal leg profiles provide uniform contact areas on adjacent substrates. When installed along vertical drywall corners or cabinet perimeters, the matching leg dimensions allow consistent fastening patterns on both sides. Actual load distribution depends on fastener placement, connection stiffness, and applied loads, which should be verified through structural calculations for critical assemblies.

Equal sections also simplify fabrication workflows by eliminating handedness during cutting and miter alignment. Assembly technicians can rotate or flip sections along the profile axis without altering center-to-edge hole distances, which speeds up modular framing assembly and reduces the chance of mismatched parts arriving on site.

Unequal Leg Sections: Space Optimization and Asymmetrical Bending Resistance

Unequal leg angles provide distinct cross-sectional properties by pairing a longer flange with a shorter flange. These asymmetric extrusions solve severe physical clearance limits where a wide flange cannot fit within adjacent wall cavities or narrow machinery channels. The wider leg offers ample surface area for mechanical bolt patterns, while the narrow leg provides a compact anchoring lip.

The structural performance of unequal leg profiles depends on section properties, loading direction, and support conditions. Engineers calculate section modulus and moment of inertia about the principal axes to determine bending resistance. Orientation choices should be based on detailed structural analysis rather than general assumptions about leg position.

For projects involving heavy cladding or horizontal shelf ledges, structural engineers analyze the specific section geometry and loading conditions to optimize material efficiency. Proper selection requires comparing calculated deflections and stresses against design limits for the intended application.

Corner Geometry: Sharp Extruded Edges vs. Structural Internal Radii

Extruded aluminum angles differ markedly at their internal apex, exhibiting either a sharp corner junction or a smooth internal fillet radius. The choice between sharp and radiused corners depends on aesthetic requirements, fabrication constraints, and stress distribution needs. Sharp interior corners facilitate flush aesthetic alignments against cut stone, ceramic tiles, or architectural glass panels. Radiused interior fillets reduce stress concentrations at the apex, which can be beneficial in applications involving cyclic loading. The appropriate corner geometry depends on the specific loading conditions, material properties, and fatigue design requirements of each project.

Sharp interior corners: Enable flush mating against crisp architectural substrates and modern interior transitions
Radiused interior fillets: Reduce stress concentrations at the corner apex
Outer apex sharpness: Determines the visual character of exterior joints and impact resistance

Alloy Metallurgy and Temper States: 6063 vs. 6463

Chemical formulation governs how cleanly an extrusion forms, how readily it accepts polishing, and whether it can withstand continuous structural shear. The 6000-series aluminum-magnesium-silicon family is widely used for extruded angle profiles, combining strength with finish quality. Selecting between structural grades and optical-finishing alloys helps prevent load-related issues and ensures desired aesthetic outcomes.

6063-T5 vs. 6063-T6: Balancing Extrudability, Tensile Strength, and Yield Capacity

Alloy 6063 serves as the workhorse of architectural and industrial framing, delivering a favorable strength-to-weight ratio alongside consistent dimensional stability. Its mechanical performance depends heavily on the heat treatment temper applied after hot die extrusion. In the T5 temper, the profile is cooled from the elevated-temperature extrusion process and then artificially aged; the cooling method depends on the production process, and the resulting temper offers moderate yield strength and good dimensional precision.

For heavy-duty load-bearing assemblies, the T6 temper introduces solution heat treatment followed by precision artificial aging, increasing tensile yield strength to support heavy equipment brackets and structural curtain wall anchors. Mechanical properties vary with alloy composition, temper, and section thickness. Designers should obtain certified mechanical properties from the supplier for the specific profile cross-section and verify that the material meets applicable standards such as ASTM B221 or EN 755-2.

Cold forming operations on site should be evaluated based on the specific alloy, temper, bend radius, and section geometry, with trial bending recommended before field application.

6463-T5: Chemical Composition Tuning for Bright-Dip Mirror Finishes

Standard 6063 alloy contains controlled levels of iron that form microscopic intermetallic phases during solidification. When subjected to chemical brightening and clear anodizing, these microscopic iron compounds scatter light, resulting in a slightly milky or greyish haze. Alloy 6463 addresses this aesthetic limitation by restricting iron content strictly below 0.15 percent.

This refined chemistry reduces light-scattering inclusions, which can improve the optical clarity and reflectivity of chemically brightened and anodized surfaces when processed appropriately. Architects specify 6463-T5 for premium interior retail accents, showcase frames, and luxury bathroom trims where enhanced optical clarity after bright anodizing is prioritized. The final finish quality depends on both the alloy composition and the specific extrusion and finishing processes applied.

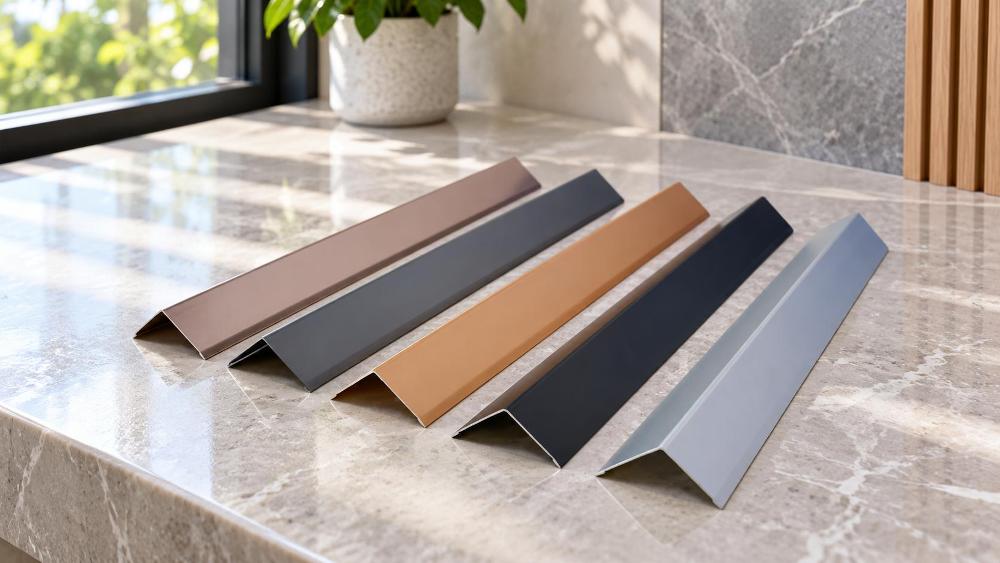

Elevated 45-degree perspective shot showing five pieces of aluminium angle profiles arranged parallel to each other on a plain white tabletop

Protective Surface Finishing Technologies and Environmental Durability

Bare mill finish aluminum rapidly produces a natural passivating oxide film that provides basic protection in mild indoor air. However, direct atmospheric exposure, airborne sea salts, human touch, and abrasive cleaning chemicals can degrade unprotected raw surfaces over time. Modern finishing methods enhance corrosion resistance, abrasion resistance, and aesthetic appearance across a wide range of indoor and outdoor applications.

Anodizing and Electrophoresis: Electrochemical Barrier and Abrasion Resistance

Anodizing forms an aluminum oxide layer on the surface of the extrusion; its hardness and abrasion performance depend on the specific anodizing process and coating specification applied. Standard architectural anodizing creates a porous structure that readily absorbs organic or inorganic coloring dyes before final hydrothermal sealing.

The resulting satin or brushed metallic textures preserve tactile metal aesthetics while resisting abrasive mechanical scuffs under typical handling and cleaning conditions. Electrophoresis builds upon this barrier by applying an electro-deposited organic resin film over the freshly sealed anodized base, delivering enhanced resistance to fingerprints, chemical cleaners, and airborne contaminants in high-traffic interior corridors.

Powder Coating and Wood Grain Heat Transfer: Architectural Aesthetics and Impact Shielding

Powder coating applies an electrostatic charge to dry thermoset polymer particles, which are subsequently cured into a thick, uniform protective envelope. This polymer skin provides impact resistance, cushioning underlying metal corners from blunt jobsite knocks and handling scrapes. Formulators produce powder coatings in virtually limitless RAL color palettes, matte sheens, and specialized micro-textures.

The resulting finish bridges structural gaps cleanly, concealing minute tool markings or substrate grain lines across large architectural assemblies. Wood grain finishes combine a base powder layer with vacuum heat-transfer sublimation, infusing authentic timber patterns deep into the coating layer, granting architects the warmth of natural oak or walnut alongside aluminum’s resistance to moisture damage and insect attack.

Fluorocarbon (PVDF) Coatings: Enhanced Weathering Defense for Exterior Façades

Exterior building envelopes endure intense solar ultraviolet radiation, airborne acid pollutants, and wide temperature swings. Standard paint systems can degrade under these conditions, chalking, fading, and losing film integrity over time. Fluorocarbon coatings, formulated with polyvinylidene fluoride (PVDF) resin systems, provide enhanced chemical resistance and weatherability.

When properly applied according to coating manufacturer specifications and maintained as recommended, these systems offer improved color retention and durability in exterior architectural applications. A typical PVDF coating system may include the following steps, though specific primer chemistry and the number of coats vary by coating manufacturer:

Pretreatment: Profiles undergo multi-stage chemical washing and conversion coating to ensure reliable substrate adhesion
Primer Application: A primer specified by the coating manufacturer seals the metal surface and prepares it for topcoat bonding
Fluorocarbon Topcoat: A PVDF color coat provides primary weather protection and pigmentation
Protective Clear Coat: An optional fluoropolymer clear coat may be applied depending on the coating system

Key Application Scenarios and Structural Detailing

Thanks to its dependable 90-degree geometry and adaptable finishing options, an aluminium angle profile integrates into both decorative and structural assemblies. Correct specification requires analyzing how the extrusion joins adjacent substrates under actual operational wear. Examining proven architectural and industrial installations reveals how tailored wall thickness and section profiles address distinct engineering challenges across different building and equipment contexts.

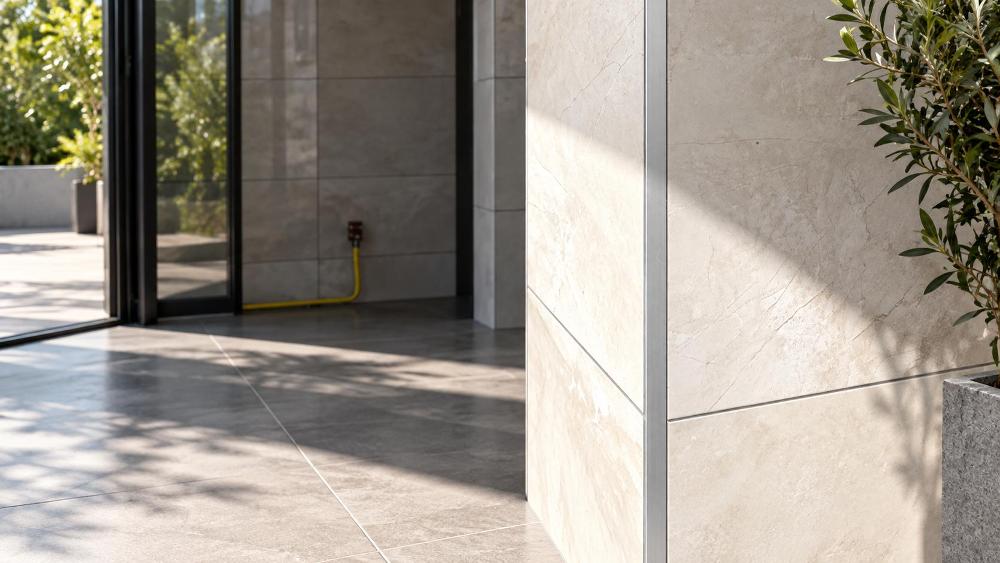

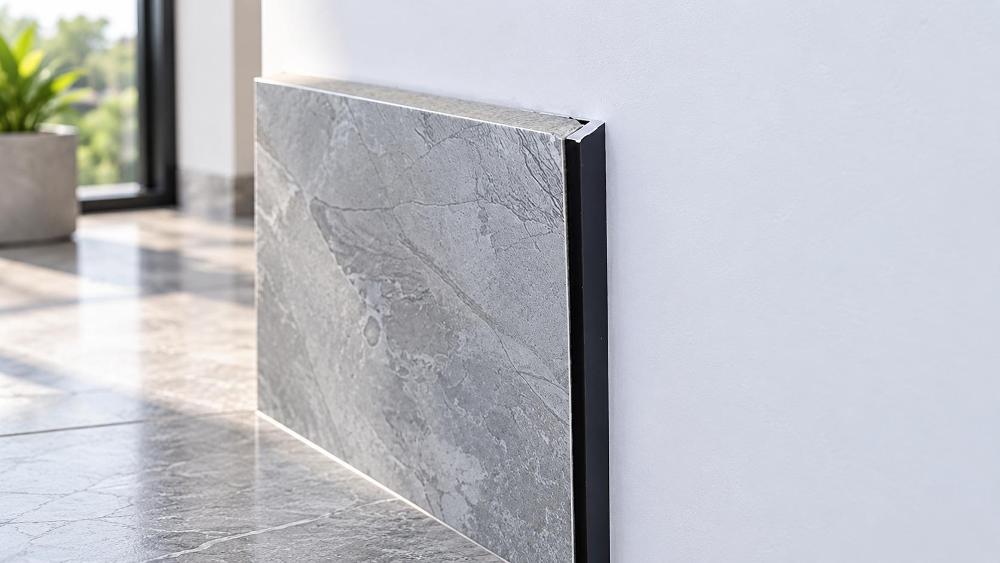

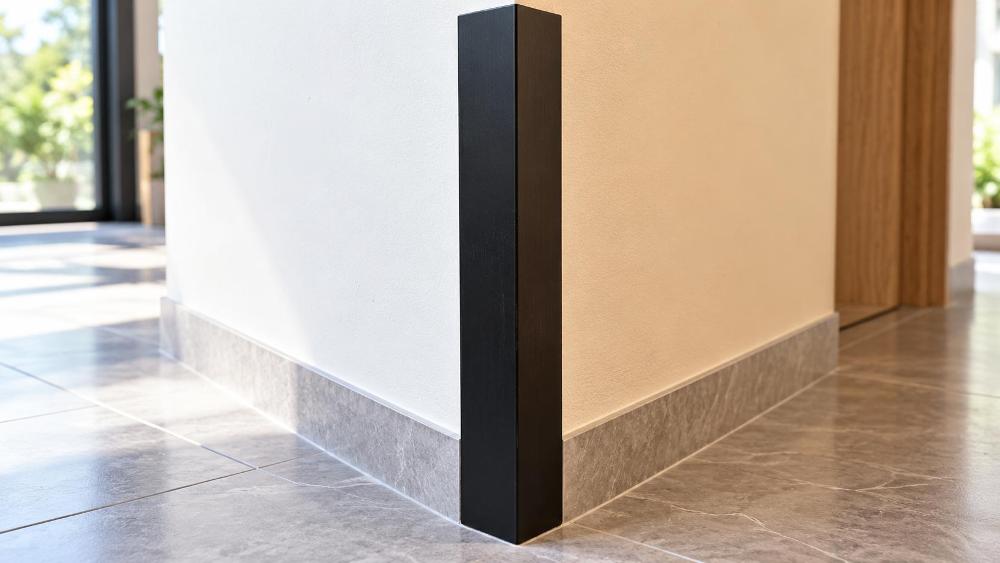

Ceramic Tile Edging and Wall Corner Protection

Exposed ceramic tile edges are brittle and prone to chipping when subjected to blunt impacts in busy commercial corridors. Installing an aluminium angle profile as an external border covers and helps protect vulnerable porcelain edges while creating crisp, straight grout margins. In high-traffic healthcare and hospitality facilities, exterior wall corners suffer frequent contact from hand carts and rolling equipment.

An angle profile in this position can shield the tile edge from direct impacts, but it should not be treated as a rated impact guard unless the specific assembly has been tested for that purpose. Selecting an appropriate wall thickness and secure fixing method for the application remains the responsibility of the installer or specifying engineer.

Door, Window, and Cabinet Framing Assemblies

Modern fenestration assemblies rely on concealed and semi-exposed angle sections to stabilize corner joints against wind pressures and operational racking. When mitred and fastened inside hollow frame chambers, corner angles help prevent diagonal frame skewing over time. Commercial cabinetry and architectural millwork incorporate aluminum angles as rigid interior brackets and perimeter ledgers.

The metal profile provides a nominal 90-degree framing edge, which is useful for establishing consistent corner geometry during assembly. Because the profile itself has manufacturing tolerances and cannot correct an out-of-plumb wall, installers typically address irregular or out-of-plumb substrates with appropriate shimming or installation detailing rather than relying on the profile alone.

Industrial Equipment Mounting and Protective Guard Enclosures

Industrial automation facilities require sturdy, lightweight mounting frameworks to support safety wire mesh, perimeter shields, and pneumatic manifolds. Aluminum angle extrusions allow rapid bolted assembly without on-site welding equipment or hot-work fire permits. These structural angles function as rugged guide rails and mounting shelves inside industrial electrical enclosures.

When electrical grounding or bonding is required, the conductive aluminum substrate can be incorporated into grounding systems, provided that anodized or painted coatings are removed at connection points, proper bonding hardware is installed, and electrical continuity is verified according to applicable electrical codes and project specifications.

Fabrication, Machining, and Joint Assembly Workflows

Working with extruded aluminum demands calibrated tooling and proper joint design to preserve surface integrity and mechanical strength. Unlike structural steel, aluminum’s lower modulus of elasticity and tendency to adhere to cutting tools require deliberate cutting and joining techniques. Adhering to proven fabrication steps helps ensure clean, burr-free miter seams and mechanically stable joints throughout the assembly lifecycle.

Precision Cutting, Deburring, and Miter Alignment

Cutting aluminum angles cleanly requires high-speed circular saw blades equipped with carbide teeth featuring a negative rake angle. Using negative rake teeth helps prevent the spinning blade from aggressively snatching thin profile flanges, promoting smooth cutting feeds and minimal chattering. Applying micro-droplet mist lubrication during cutting cools the interface, reducing the tendency for melted aluminum chips to adhere to the saw teeth.

Once cut, profile ends should be deburred with dedicated ceramic blades or rotary abrasive deburring wheels to remove sharp edges that could otherwise injure installers or damage adjacent finishes during handling.

Blade selection: Utilize triple-chip grind (TCG) carbide blades designed specifically for non-ferrous architectural extrusions
Clamping procedures: Clamp both profile legs securely against the saw fence to minimize vibration and maintain accurate miter cuts
Temperature stabilization: Allow hot-extruded or newly cut stock to reach ambient room temperature before measuring critical installation lengths

Mechanical Fastening vs. High-Strength Structural Adhesive Bonding

Fastening aluminum angles to walls or subframes involves choosing between direct mechanical anchors and advanced elastomeric adhesives. Mechanical fasteners provide immediate load-bearing capacity, allowing instant structural loading without chemical curing delays. Drilling through visible profile faces punctures protective anodized coatings, introducing potential corrosion points and aesthetic blemishes.

Fasteners also concentrate operational loads directly at bolt holes, which can cause localized stresses in thin-wall sections under heavy dynamic loading. Structural hybrid polymers and modified silane adhesives distribute joint shear stresses more evenly along the profile contact surface. This continuous adhesive bed eliminates visible surface screw heads, helps absorb vibration, and can accommodate dissimilar thermal expansion rates between aluminum and masonry substrates.

Sourcing Specifications, Customization, and Supply Chain Parameters

Procuring extrusions for commercial projects requires balancing structural wall requirements against manufacturing minimums, packaging standards, and die tooling lead times. Incomplete procurement specifications can cause die delivery delays or handling issues during shipment. Establishing clear technical requirements before cutting custom dies helps ensure predictable quality and consistent assembly behavior across every production run.

Section Dimensional Tolerances and Wall Thickness Sizing

Determining profile wall thickness requires analyzing whether the angle functions as an aesthetic visual edge or an engineered load-bearing bracket. As illustrative examples only, lightweight interior decorative trims are sometimes specified with walls in the range of roughly 1.0 mm to 1.5 mm, while heavy equipment supports and structural window perimeter angles are sometimes specified with thicknesses of roughly 2.0 mm to 4.0 mm or higher.

These figures are not design values. Required wall thickness must be selected from calculations based on the specific profile cross-section, applied loads, support conditions, and connection details, since sizing thickness incorrectly can lead to flange deflection when securing mechanical fasteners under high torque. Dimensional tolerances should adhere to international standards, such as EN 755-9 or ASTM B221 extrusion guidelines, which define allowable variances for leg angularity, flatness, twist, and lateral curvature along the profile length.

Managing Minimum Order Quantities, Tooling Lead Times, and Delivery Schedules

Coordinating custom extrusion tooling requires balancing production runs against operational installation schedules. Standard catalog dies eliminate tooling surcharges and lead times, making them ideal for rapid jobsite framing needs. When specialized unequal legs, internal screw ports, or unique snap-fit grooves are required, custom extrusion dies become necessary, typically requiring an engineering review and die trial window before full production begins.

Xinhe Aluminium lists an MOQ of 100 to 500 kilograms per section and a delivery time of 10 to 20 days; buyers should confirm the specific schedule for their order with the manufacturer. The manufacturer operates integrated R&D and manufacturing systems with over 25 years of extrusion experience, supporting an annual capacity of 200,000 tons across more than 5,000 aluminium profile products for global markets.

Die Design and Simulation: Tooling engineers design the extrusion die profile with precise shrinkage allowances to achieve target geometry
Billet Heating and Extrusion: Heated aluminum billets pass through automated extrusion presses to produce continuous angle lengths
Quenching and Stretch Straightening: Automated runout tables quench and mechanically stretch extrusions to reduce longitudinal twist and curvature
Artificial Aging: Profiles enter controlled thermal aging ovens to achieve the required T5 or T6 mechanical temper
Surface Finishing and Protective Film Packing: Sections receive specified anodized, painted, or powder-coated finishes, followed by protective peel-off masking

Frequently Asked Questions

What makes an unequal leg aluminium angle profile superior to an equal leg profile in specific assemblies?

An unequal leg aluminium angle profile can concentrate structural material along one axis, potentially increasing section modulus in a specific bending direction without adding redundant weight. It also fits more easily into tight physical clearances where one substrate face provides minimal anchoring width. The structural advantage depends on the specific section geometry, loading direction, and connection details, which should be verified through calculation.

Why should projects requiring a high-gloss metallic finish specify 6463 alloy instead of standard 6063?

Alloy 6463 enforces a strict iron threshold below 0.15 percent, reducing the intermetallic inclusions that can cause a milky appearance in standard 6063 when chemically brightened. This compositional refinement can improve the reflectivity and optical clarity of chemically brightened and anodized surfaces, making 6463-T5 suitable for premium architectural applications where enhanced finish quality is desired. The final appearance depends on both the alloy and the specific finishing processes applied.

How does profile wall thickness affect structural bending under horizontal point loads?

Bending deflection decreases as the area moment of inertia increases, and moment of inertia rises with wall thickness and overall section depth. Thicker walls help prevent localized web buckling and improve resistance to fastener pull-through under cyclic loading. Actual structural performance should be calculated using the specific cross-sectional properties and loading conditions.

What surface treatment is recommended for exterior building corners in humid or coastal zones?

For exterior building corners in humid or coastal environments, specify anodized finishes or organic coatings that comply with applicable architectural finishing standards. Fluorocarbon PVDF coatings meeting AAMA 2605 specifications or architectural powder coatings offer enhanced resistance to salt spray and ultraviolet exposure. Anodized finishes should be specified according to recognized standards such as FGIA/AAMA 611, with class and minimum thickness determined by the project’s environmental exposure and aesthetic requirements.

Which fastening method is preferable for tile corner trims: mechanical screws or adhesive mortar embedding?

Embedding a perforated or ridged anchoring leg directly into the tile mortar bed creates a continuous mechanical bond without visible surface screw heads. Mechanical fasteners are typically reserved for heavy structural backing framing where immediate shear strength is required. Waterproofing, when needed, should be provided by independent waterproofing membranes and properly detailed transitions, not by the trim profile itself.

Conclusion: Strategic Specification for Reliable Aluminum Angle Assemblies

Designing durable, visually refined installations depends on selecting an aluminium angle profile that matches the mechanical and environmental realities of the project. By evaluating leg dimensions, distinguishing between 6063 and 6463 alloys, and applying suitable surface treatments, engineers and designers work to avoid unexpected component deflection and premature surface degradation.

Successful specification treats cross-sectional geometry, alloy temper, and surface coating as an integrated system rather than independent details. Heavy-duty brackets may require the elevated yield strength of 6063-T6, while visible architectural edges often prioritize the optical clarity of 6463-T5 or the impact protection of advanced powder coatings. Factoring in thermal expansion, mechanical loading paths, and environmental exposure helps ensure installations remain structurally sound and visually satisfactory over their service life.

From high-volume commercial real estate fit-outs to precision industrial automation guards, procuring profiles requires dependable manufacturing consistency and verified material properties. Working with experienced extrusion manufacturers simplifies custom sizing, provides controlled geometric tolerances, and supports predictable supply chains. Specifying the appropriate aluminium angle profile helps transform corner joints into robust, enduring structural assemblies.
