Anodized Aluminium Profiles: Material Selection and Practical Applications in Modern Design

October 16, 2026
2

Anodized aluminium profiles have become indispensable across construction, interior design, and industrial applications. The anodizing process creates a protective oxide layer on the aluminium surface, dramatically improving corrosion resistance and aesthetic versatility. This transformation makes anodized aluminium profiles suitable for environments ranging from coastal regions with salt spray exposure to interior spaces demanding specific visual finishes.

The choice between anodized aluminium profiles and other surface treatments hinges on understanding both material properties and project requirements. When specification sheets and design briefs fail to account for environmental exposure, installation context, and maintenance expectations, projects often encounter premature wear or aesthetic degradation. Understanding what anodized aluminium profiles offer helps teams make decisions aligned with actual performance needs rather than generic assumptions.

What Happens During the Anodizing Process

Anodizing is an electrochemical process, not a coating applied to the surface. The aluminium profile sits in an electrolyte bath where an electrical current causes the material itself to oxidize, thickening the natural oxide layer that forms when aluminium contacts air. This engineered oxide layer becomes integral to the material rather than sitting on top of it.

The process begins with surface preparation, removing oils and contaminants through alkaline cleaning and acid etching. The profile then enters an electrolyte—typically sulfuric acid—where controlled current flows through the part for a set duration. As the oxide grows, the surface develops a porous structure that can be sealed with hot water or chemical treatments. The sealed pores trap moisture and contaminants, preventing further corrosion beneath the surface.

Type II anodizing, the most common specification for architectural and industrial use, creates oxide layers between 10 and 25 micrometers thick. Type III, or hard anodizing, exceeds 25 micrometers and suits heavy-wear applications. The thickness directly correlates with corrosion resistance—thicker layers provide longer protection in harsh environments.

Structural Advantages of Anodized Aluminium Profiles

Anodized aluminium profiles retain the inherent strength-to-weight characteristics of aluminium while gaining superior surface durability. A 6063-T5 or 6063-T6 aluminium alloy, commonly used for architectural extrusions, delivers yield strength around 170–240 MPa depending on temper. The anodizing process does not meaningfully alter this mechanical property because the oxide layer forms within and upon the aluminium rather than adding separate material.

The weight advantage over steel remains significant. Aluminium weighs approximately one-third as much as steel at equivalent cross-sections, making anodized aluminium profiles easier to handle, transport, and install. Installation crews can work more efficiently without heavy lifting equipment, reducing labor costs and on-site accidents.

The oxidized surface also improves wear resistance in high-touch areas. Interior door frames, window trim, and equipment brackets benefit from this property. Anodized aluminium profiles resist scratching and abrasion better than bare aluminium, maintaining their aesthetic appeal through years of contact and movement.

Surface Finishes and Color Options

The anodizing process itself creates a clear or slightly amber-tinted protective layer. To achieve specific colors, dyes or metal salts are introduced into the porous oxide during or after anodizing. This approach differs fundamentally from paint or powder coating, where pigment sits on the surface.

Dyed anodized finishes offer considerable color range: blacks, bronzes, golds, silvers, and earth tones all remain available. The color penetrates into the oxide matrix, providing durability that painted surfaces cannot match. Scratches on anodized finishes expose more anodized material beneath—maintaining consistent appearance—whereas scratched paint reveals bare substrate or primer underneath.

Electrophoresis deposits an organic polymer film into the porous oxide layer, creating a unified coating that enhances corrosion resistance further. This finish suits applications exposed to moisture or salt spray. Anodized aluminium profiles with electrophoresis coatings perform particularly well in coastal environments or high-humidity industrial settings.

Powder coating and fluorocarbon finishes layer on top of the anodized surface, combining anodizing’s corrosion protection with additional aesthetic control. These dual-layer systems suit architectural facades and outdoor structural elements where both durability and visual consistency matter.

Comparing Anodized Aluminium Profiles to Alternative Treatments

Treatment Type	Corrosion Resistance	Aesthetic Control	Cost	Best Applications
Mill Finish (Bare)	Minimal	Limited	Lowest	Interior, low-moisture environments
Anodized (Type II)	High	Moderate	Low-Moderate	Architecture, interior trim, general industrial
Anodized (Type III)	Very High	Moderate	Moderate	Heavy-wear, coastal, outdoor structural
Powder Coated	Very High	Excellent	Moderate-High	Facades, automotive, decorative components
Fluorocarbon Coated	Excellent	Excellent	High	Long-term outdoor, architectural showcase projects

Bare or mill finish aluminium oxidizes naturally when exposed to air and moisture, but this protective layer forms slowly and inconsistently. In humid or salty environments, white or grey oxidation bloom appears within weeks, and red rust may follow if the substrate is compromised. Anodized aluminium profiles avoid this unpredictability because the oxide layer forms uniformly under controlled conditions.

Powder coating applied to bare aluminium can fail if the coating cracks or chips, exposing substrate to corrosive conditions. Anodizing first, then powder coating, creates redundant protection—the anodized layer protects even if the outer coating sustains damage. This dual-layer approach justifies higher upfront cost for long-lifecycle applications like exterior architectural systems.

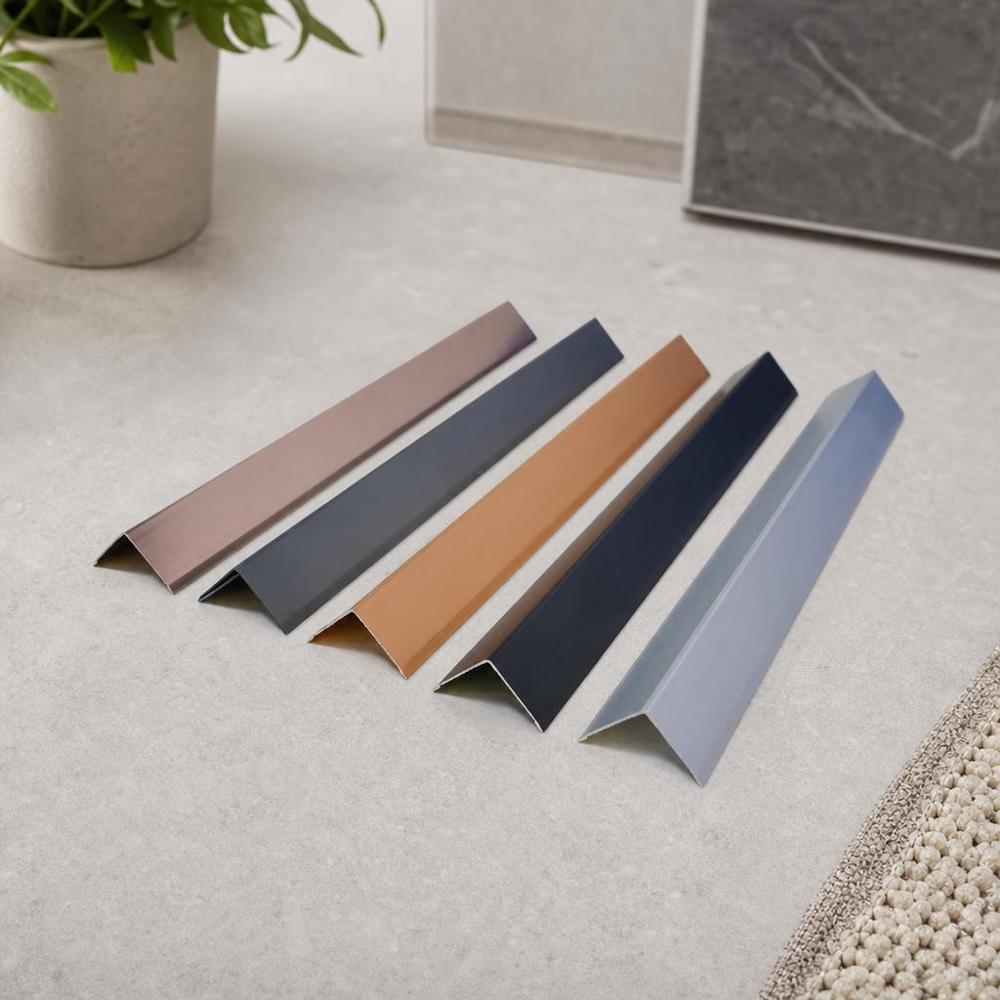

Elevated perspective showing five anodized aluminium angle profiles in various finishes including rose gold, slate grey, copper, black, and silver.

Practical Applications in Interior Architecture

Anodized aluminium profiles excel as tile trim and corner protection in bathrooms, kitchens, and wet areas. When ceramic or stone tiles meet walls or adjacent surfaces, the exposed edge is vulnerable to chipping and moisture infiltration. An anodized aluminium angle profile—typically a 90-degree extrusion—conceals the tile edge while creating a finished visual boundary.

The precise 90-degree geometry of these profiles ensures flush contact with perpendicular surfaces. Grout and caulk bond reliably to anodized surfaces, forming durable seals. Unlike plastic trim, which warps in humid conditions, anodized aluminium maintains dimensional stability and does not absorb moisture.

Door and window frames benefit from anodized aluminium profiles as structural components and visual transitions. The material resists corrosion where interior moisture meets outdoor air. Thermal breaks—insulating materials embedded within the profile—can be incorporated during extrusion, reducing heat transfer and improving energy efficiency in climate-controlled spaces.

Cabinet and furniture frames often use anodized aluminium profiles for visible structural elements. The clean lines and customizable finishes align with contemporary design aesthetics. Anodized profiles age gracefully, retaining appearance far longer than painted wood or untreated metal alternatives that tarnish or corrode visibly.

Industrial Mounting and Equipment Brackets

Machinery, conveyor systems, and factory equipment require robust structural supports that resist corrosion in challenging environments. Anodized aluminium profiles provide this durability at significantly lower weight than steel equivalents, reducing stress on main support structures and simplifying installation logistics.

In food processing and pharmaceutical manufacturing, anodized aluminium meets cleanability requirements. Unlike bare metal that develops corrosion stains, anodized surfaces clean easily without harboring microorganisms in oxide crevices. Regulatory compliance in these industries often specifies corrosion-resistant materials with documented surface characteristics—anodized aluminium profiles satisfy these specifications reliably.

Vibration and thermal cycling—common in industrial environments—can cause fasteners and brackets to loosen over time. The dimensional stability of anodized aluminium profiles minimizes expansion and contraction issues. This property reduces maintenance frequency and unplanned downtime compared to materials prone to thermal distortion.

Environmental and Sustainability Considerations

Aluminium is infinitely recyclable without degradation of material properties. Recycled aluminium requires only 5% of the energy needed to produce primary aluminium, making anodized aluminium profiles an environmentally conscious choice across their lifecycle.

The anodizing process itself generates minimal hazardous waste when proper treatment systems are in place. Modern facilities recycle the electrolyte solution and recover metal ions through precipitation and filtration. Sealed anodized surfaces do not leach metallic ions into the environment, making them suitable for applications near water systems or sensitive ecosystems.

Anodized aluminium profiles contribute to buildings seeking LEED or equivalent environmental certifications. The material supports long product lifecycles—structures built with quality anodized aluminium profiles often outlast single-generation building design cycles. Extended lifespan directly reduces the environmental cost per functional year, justifying the material choice on both performance and sustainability grounds.

Customization and Design Flexibility

Anodized aluminium profiles can be produced in virtually any extrusion geometry. Equal-leg angle profiles maintain balanced structural performance, while unequal-leg angles suit asymmetrical framing applications. Custom cross-sections accommodate specific load paths, thermal requirements, or aesthetic intentions without requiring stock profiles to be modified on-site.

Thickness and alloy selection allow engineers to optimize material use for specific applications. A component requiring modest corrosion resistance in a dry interior environment may specify thinner walls and Type II anodizing, reducing weight and material cost. The same component in a coastal industrial setting would specify thicker walls and Type III anodizing, accepting higher material cost to ensure multi-decade performance.

Dimensional accuracy of extruded anodized aluminium profiles exceeds machined alternatives in many cases. Tight tolerances reduce assembly complexity when profiles interface with hardware, glass, stone, or composite materials. Consistent dimensions across production batches ensure field installations proceed without unexpected fit issues or rework.

Selection Criteria for Anodized Aluminium Profiles

Begin by identifying the environment where the profile will operate. Wet areas, salt spray zones, and harsh chemical exposures demand Type III anodizing or dual-layer systems. Interior, climate-controlled spaces often perform adequately with Type II anodizing and cost optimization.

Next, specify the alloy and temper. Architectural and decorative applications typically use 6063-T5 or 6063-T6 alloys, which balance formability, strength, and corrosion resistance. Industrial applications requiring higher strength might specify 6061-T6 or 7075 variants, though these require specific alloy composition to achieve optimal anodizing results.

Define the color and surface texture required for the finished project. Dyed anodized finishes offer rich, deep colors but require verification that the chosen dye aligns with the anodizing facility’s capabilities and quality standards. Electrophoresis and powder coating layers provide additional aesthetic options if the base anodizing alone does not meet visual specifications.

Confirm dimensional and tolerance requirements with the profile manufacturer. Provide detailed engineering drawings specifying length, cross-sectional geometry, wall thickness, and any grooves, holes, or features required. Anodized aluminium profiles are best ordered with final dimensions and finishes complete—post-anodizing machining can compromise the protective oxide layer and create corrosion entry points.

Common Misconceptions About Anodized Aluminium

Anodizing does not make aluminium entirely corrosion-proof. Rather, it dramatically slows oxidation by providing a barrier between the raw material and the environment. Scratches or damage that penetrate the oxide layer expose fresh aluminium beneath, which will oxidize unless the damage is promptly sealed with touch-up paint or protective coating.

The color of anodized aluminium does not indicate the thickness or quality of the oxide layer. Black anodized profiles are not inherently more durable than silver or bronze finishes—color results from dye selection and process chemistry, not protection level. Type II and Type III designations define protection, not appearance.

Cost comparisons between anodized and painted aluminium must account for lifecycle maintenance. Anodized surfaces rarely require touch-up or repainting, whereas painted profiles deteriorate visibly and need recoating every 5–10 years depending on exposure. Over 20–30 year project lifecycles, anodized aluminium typically proves more economical despite higher initial material and processing costs.

Integration with Modern Design Systems

Contemporary architecture increasingly relies on anodized aluminium profiles as visible structural and decorative elements. The material’s clean aesthetics, dimensional precision, and color range support minimalist design philosophies without requiring concealment behind finishes or cladding.

Anodized aluminium profiles integrate naturally with glass, stone, wood, and composite materials. Unlike steel, which requires rust preventatives and paint to appear refined, anodized aluminium achieves a finished appearance directly from the manufacturing process. This characteristic simplifies detailing and reduces on-site finishes work.

Parametric and modular design systems benefit from the consistency of anodized aluminium profiles. When profiles are ordered to exact specifications with minimal variance, assembly sequences become predictable. Installers encounter fewer surprises, reducing labor time and quality issues associated with field improvisation.

Working with Manufacturers and Technical Support

Selecting a manufacturer with genuine extrusion and anodizing capabilities ensures reliable quality and customization. Distributors reselling inventory profiles offer limited flexibility; true customization requires direct relationships with production facilities capable of engineering specific geometries and controlling anodizing processes.

Provide manufacturers with detailed environmental exposure data: coastal proximity, temperature extremes, chemical exposure, humidity levels, and maintenance access. This information informs alloy, temper, and anodizing type recommendations. Vague requests for "corrosion-resistant profiles" often result in over-specified or under-specified solutions.

Request test data and references from manufacturers when anodized aluminium profiles serve critical applications. Salt spray testing (ASTM B117), humidity chamber exposure (ASTM D2247), and adhesion tests validate manufacturer claims about corrosion resistance and coating durability. Reputable manufacturers maintain test laboratories and provide these data proactively.

Final Thoughts on Anodized Aluminium Profiles

Anodized aluminium profiles represent a mature, well-understood material solution for applications spanning architectural, industrial, and decorative domains. The anodizing process transforms raw aluminium into a corrosion-resistant, aesthetically versatile material suitable for decades of service across diverse environments.

Specifying anodized aluminium profiles requires understanding environmental exposure, alloy selection, anodizing type, and finish options. This knowledge translates into material choices that perform reliably, age gracefully, and provide genuine economic value across project lifecycles. Teams that prioritize these technical foundations avoid costly retrofits, maintenance surprises, and aesthetic disappointment that result from uninformed material selection.

Whether supporting interior tile trim, securing industrial equipment, or framing architectural features, anodized aluminium profiles deliver consistent performance when matched thoughtfully to application requirements. The material’s combination of strength, weight efficiency, durability, and customization flexibility ensures its continued relevance in modern design and engineering practice.
