It combines the characteristics of visible frame and hidden frame curtain wall. With its unique structure, excellent performance and simple appearance, it is widely used in various commercial, office and high-rise building projects.
Border Color
Features
| Main Thickness | 3.0mm/2.5mm |
| Mullion Specification | 65mm x 100/120/150/180/200mm |
| Transom Specification | 65mm x 60/80/100mm |
| Glazing Rebate | 34mm |
| Exterior Cover Cap Specification | 65mm x multiple dimension |
| Materials Data | 5kg/m²～10.5kg/m² |
| MOQ | 250~500kgs/section |
| Delivery Time | 10~20days |
| Alloy | 6063-T5/T6 |
| Surface Treatment | Anodized and electrophoresis,powder coated,fluorocarbon |
| Remarks | We support a variety of customization requirements, including but not limited to length, width, thickness, etc. |

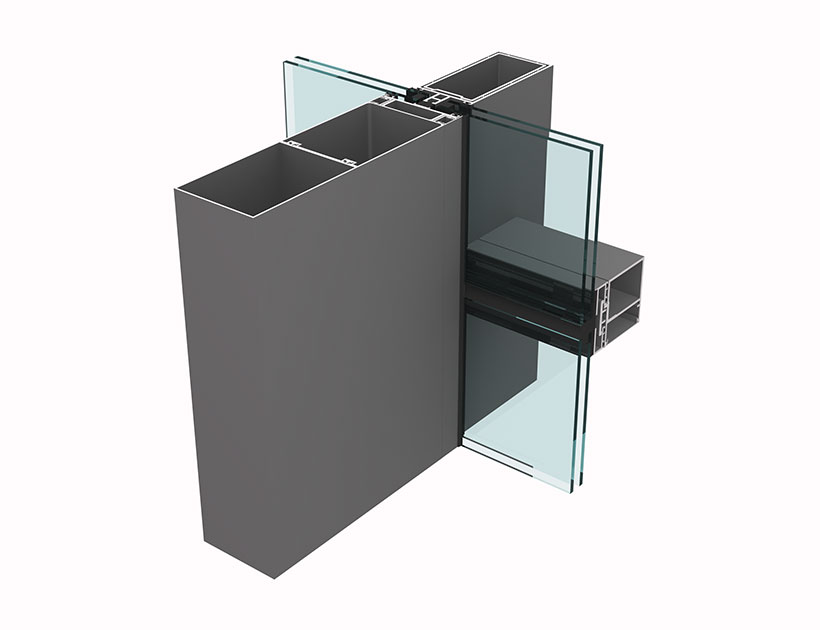

The semi-hidden frame curtain wall hides the vertical or horizontal components behind the glass, leaving only one side of the frame exposed, so that it can maintain structural strength while taking into account the simple visual effect. Compared with the full-frame curtain wall, its overall facade is cleaner and more unified, and the visual effect is more transparent.
It uses high-strength aluminium profiles as the main frame material, with high-performance hollow tempered glass and multiple sealing systems, and has excellent wind pressure resistance, air tightness and water tightness. The curtain wall structure has been carefully designed and simulated many times to ensure that it is still stable in extreme weather and meets the strict requirements of high-rise buildings for safety and durability.
In addition, the curtain wall system has a good modular design, flexible installation method, high construction efficiency, and greatly saves labor and time costs, while reducing the difficulty of later maintenance.
High-strength narrow-frame windows maximize sunlight, offer versatile openings with screens, and enhance aesthetics with sleek, flush exteriors.
