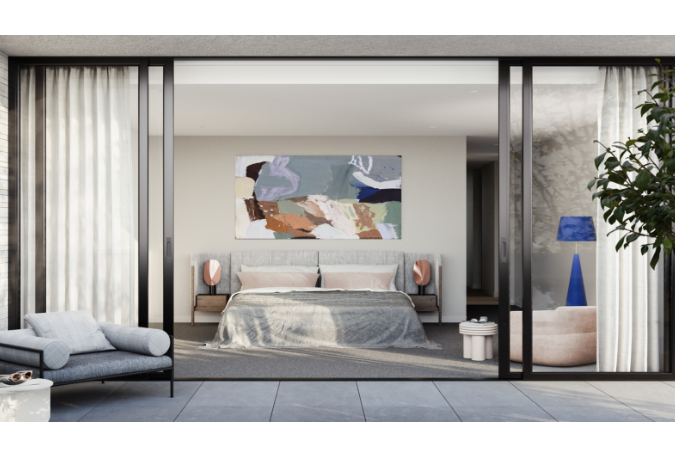

This sliding door adopts high-quality aluminium profiles and large-area tempered glass, showing a transparent and atmospheric visual effect, giving the space more natural light and extended vision.
Border Color
Features
| Main thickness | 1.5mm |
| Width of outer frame | 126mm x 36mm |
| Width of window sash | 78mm x 33mm |
| Glazing rebate | 12mm/30mm |
| Mesh | Diamond mesh or High-transparency mesh |
| Materials data | 9.2kg/m² |
| MOQ | 100~500kgs/section |
| Delivery time | 10~20days |
| Alloy | 6063-T5/T6 |
| Surface treatment | Anodized and electrophoresis、powder coated、fluorocarbon and wood grain |
| Remarks | We support a variety of customization requirements, including but not limited to length, width, thickness, etc. |

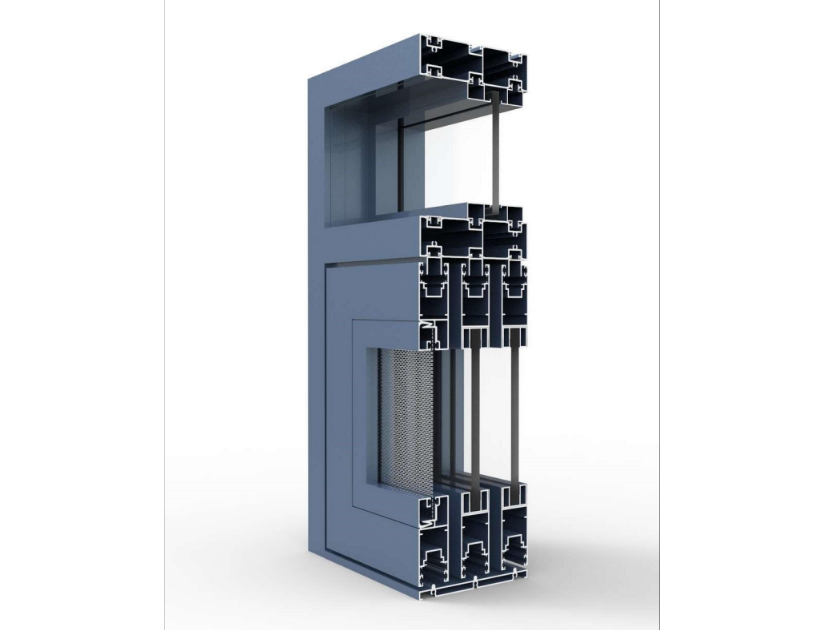

This aluminium sliding glass door adopts a narrow frame structure to maximize the proportion of glass, which not only enhances the transparency and lighting effect of the space, but also makes the overall vision more open and atmospheric.
Using high-quality 6063-T5/T6 aluminium alloy profiles, this sliding door has excellent tensile strength and hardness, ensuring that the structure is stable and does not deform during long-term use. The surface can be selected from a variety of processes such as anodizing, electrophoresis, and powder spraying, which not only improve the overall texture, but also enhance the anti-corrosion and anti-oxidation capabilities.
In addition, this aluminium sliding glass door is equipped with multi-layer sealing strips to effectively prevent the infiltration of wind, sand, rain, and noise, greatly improving the sound insulation, air tightness and water tightness.
It has two opening methods: ground rail push-pull and suspended rail push-pull.It can be applied to various scenarios such as balcony and study.
