It adopts a combination of high-strength aluminium profiles and high-quality insulated glass. The overall structural stability is strong and can effectively cope with external forces such as wind pressure, thermal expansion and contraction, and earthquake displacement.
Border Color
Features
| Main Thickness | 3.0mm/2.5mm |
| Mullion Specification | 70mm x 120/150mm |
| Transom Specification | 70mm x 55/68mm |
| Glazing Rebate | 34mm |
| Width of Insulations Strip | 14.8mm |
| Materials Data | 6kg/m²～13.5kg/m² |
| MOQ | 250~500kgs/section |
| Delivery Time | 10~20days |
| Alloy | 6063-T5/T6 |
| Surface Treatment | Anodized and electrophoresis, powder coated, fluorocarbon |
| Remarks | We support a variety of customization requirements, including but not limited to length, width, thickness, etc. |
The aluminium profiles of this insulated glass curtain wall are made of high-strength aluminium alloy. After surface treatment processes such as anodizing, electrophoretic coating, or fluorocarbon spraying, they not only have good corrosion resistance, but also have stable color and delicate texture, suitable for various climates and environmental conditions.
The glass part adopts a double-layer insulated glass structure with inert gas filled in the layer, which effectively blocks heat conduction and ultraviolet radiation, and has good sound insulation and noise reduction functions.

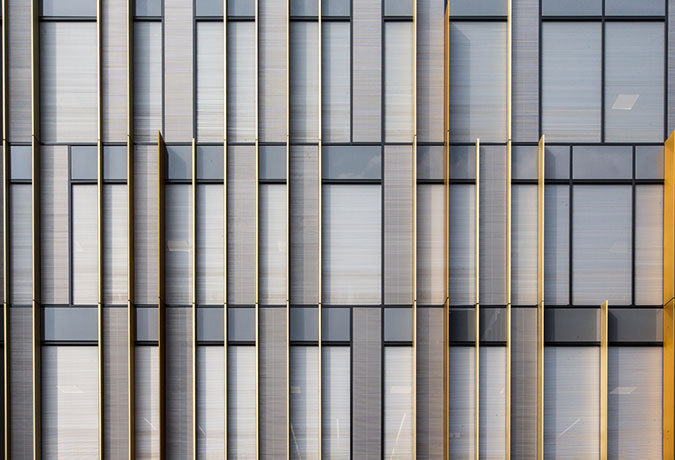

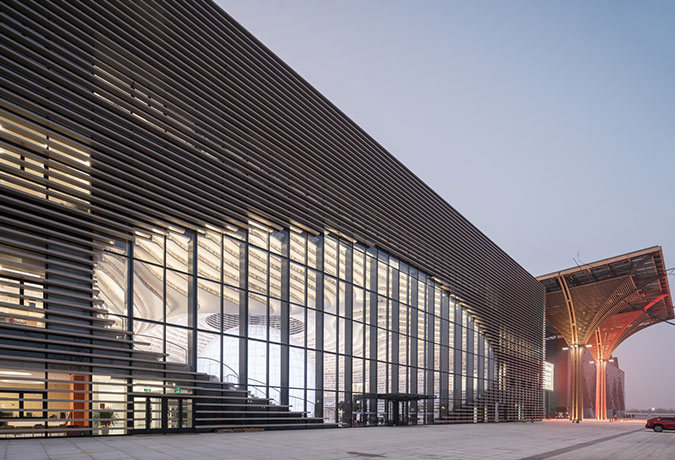

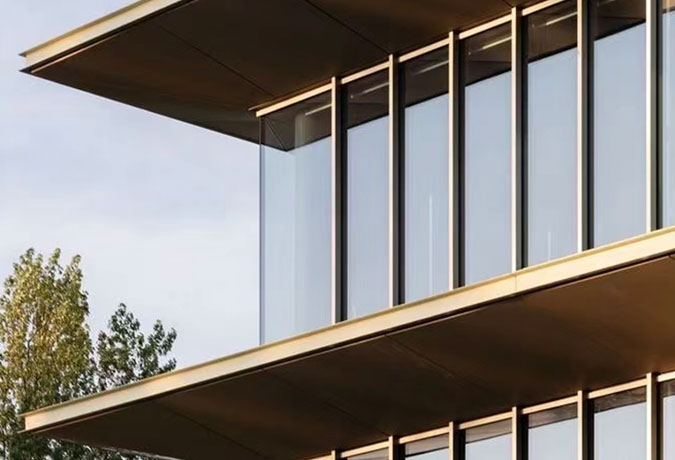

This insulated glass curtain wall adopts an exposed frame design, which makes the curtain wall facade present a simple, atmospheric and rhythmic visual effect, enhancing the expression of the building facade. It is widely used in public buildings such as office buildings, commercial complexes, high-end residences, exhibition centers, transportation hubs, and airport terminals.
High-strength narrow-frame windows maximize sunlight, offer versatile openings with screens, and enhance aesthetics with sleek, flush exteriors.
