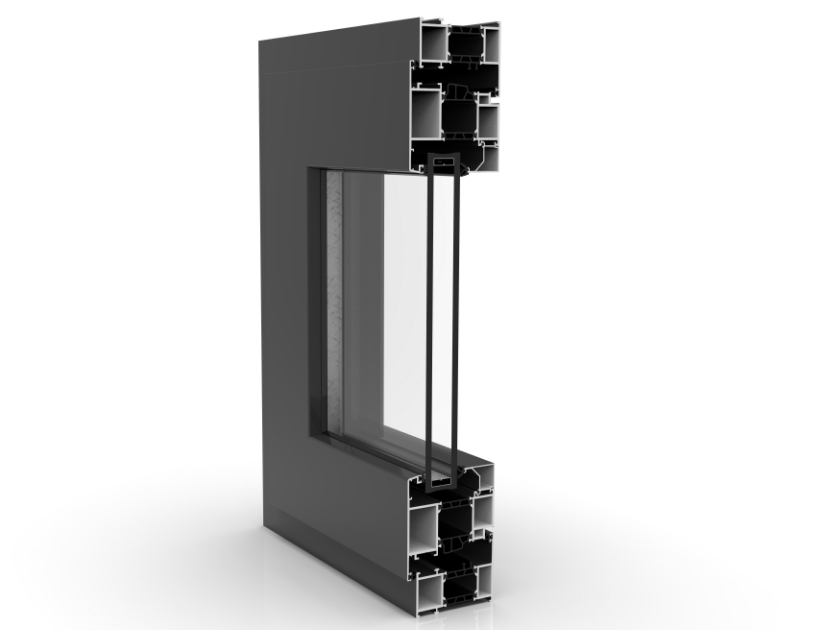

It adopts high-quality thermal-break aluminium structure and multi-chamber design, combined with high-performance insulation strips, to completely block the conduction of cold and heat. With hollow glass, it can effectively maintain a constant indoor temperature in winter and summer, offering excellent energy efficiency and comfort.
Border Color
Features
| Width of outer frame | Width 80mm*Thickness 62mm |
| Width of window sash | Width89mm *Height 90mm |
| Thickness | 2.0mm |
| Glazing rebate | 43mm |
| Width of insulated strip | 35.3mm |
| Materials data | 10.7kg/m² |
| MOQ | 100-500kgs/section |
| Delivery Time | 10-20 days |
| Alloy | 6063T5/T6 |
| Surface treatment | Anodized and eletrophoresis, powder coated, wood grain, PVDF |
| Remarks | We provide both aluminium profiles and also finished product. |
The window structure uses high-strength aluminium alloy profiles, and the surface is anodized or powder-coated, with excellent weather resistance and corrosion resistance. Even if it is in a humid or harsh environment such as the seaside for a long time, it can keep its appearance as bright as new and have a longer service life.
With hollow glass and multiple sealing structures, this aluminium window effectively isolates external noise interference and creates a quiet and comfortable indoor environment for users. Our insulated aluminium side hung window supports a variety of opening methods, including outward opening, inward opening, top hanging opening, and fixed windows, etc., which can be flexibly customized according to different space layouts to meet diverse usage needs.
It has two opening methods: ground rail push-pull and suspended rail push-pull.It can be applied to various scenarios such as balcony and study.
Aluminium Panormic Sliding Door XLB125
It offers multiple opening methods and can be equipped with an intelligent control system.
Smart 360° pivot doors with ultra-slim glass save space, offering electric/intelligent or low-maintenance mechanical options.
Aluminium Frame Sliding Glass Window GRH120
Made of high-quality aluminium profiles and double-layer tempered glass, it provides excellent thermal insulation, sound insulation, and sealing performance.
It features a narrow edge design, which saves materials while increasing the usable area.
It has good light transmission by the glass blades, which can reduce the heaviness of traditional blades.
The unique folding opening method breaks through the limitations of traditional doors, allowing for wide opening and closing.
Residential Aluminium Sliding Glass Door YD126
Equipped with a high-load-bearing silent roller system, the door ensures smooth and effortless sliding for easy and convenient operation.
Aluminium Flush Casement Window JN120A
This casement window is suitable for villas, apartments, office buildings, and various high-end residential projects, balancing style and function.
This aluminium door perfectly combines modern aesthetics and excellent performance, and is designed for the pursuit of high-quality living space.
Aluminium Frame Casement Window JNE76
There are internal and external parallel double opening structures, forming a systematic system with multiple options and configurations.
Aluminium Sliding Glass Door OPK40
Featuring a slim frame and multi-panel sliding design for enhanced aesthetics and spatial flexibility.
Aluminium Sliding Window with Mosquito Net 116
The sliding window opening method provides a smooth opening and closing experience, allowing effortless operation with minimal effort.
Aluminium Casement Window FLP50
Equipped with multiple sealing strips, the casement window can effectively prevent wind, rain and dust, and has remarkable sound insulation effect.
The simple and streamlined appearance, combined with the glass panels, improves the light transmittance of the space and creates a wide visual effect.
Aluminium Casement Window JNW120
The combination of aluminium frame and tempered glass can effectively improve the impact resistance of the window and enhance safety.
Aluminium Horizontal Sliding Window GR90C
The simple and modern appearance design can be perfectly integrated into various architectural styles, ideal for residential and commercial spaces.
Aluminium Sliding Window 128Pro
The flexible mesh configuration and optimized drainage structure make it a perfect balance between functionality and aesthetics.
