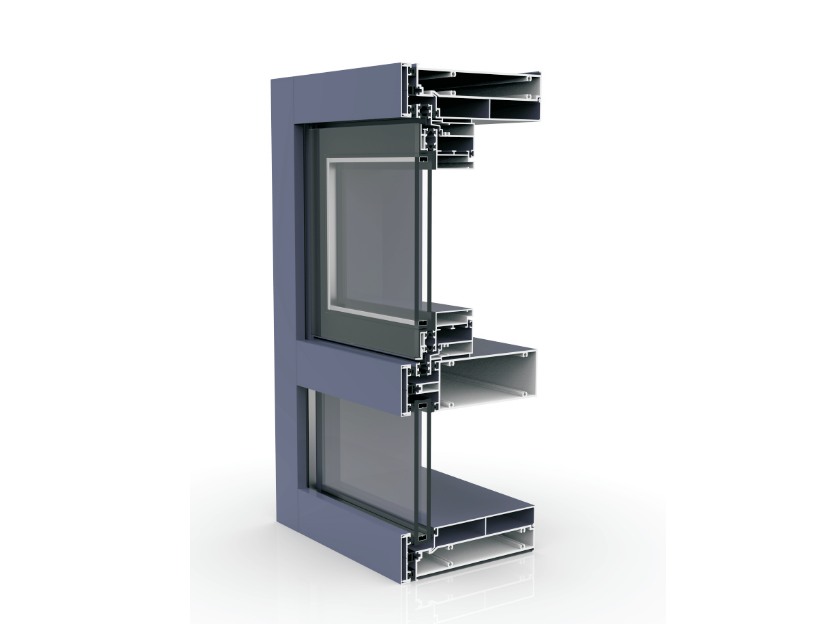

This curtain wall uses aluminium profiles as the structural frame and glass panels as the main material. The biggest feature of this curtain wall is that the vertical and horizontal frames are clearly visible, and the lines are neat and smooth, which can highlight the structural beauty and modernity of the building.
Border Color
Features
| Main thickness | 2.5mm |
| Mullion specification | 51mm x 78mm |
| Transom specification | 160mm x 60mm |
| Glazing rebate | 34mm |
| Width of insulations strip | 18mm/14.8mm |
| Consumption of Aluminium | 9.6kg/m² |
| MOQ | 250~500kgs/section |
| Delivery time | 10~20days |
| Alloy | 6063-T5/T6 |
| Surface treatment | anodized and electrophoresis、powder coated、fluorocarbon |
| Remarks | We support a variety of customization requirements, including but not limited to length, width, thickness, etc. |
Due to the lightweight characteristics of aluminium profiles, the weight of the curtain wall is greatly reduced, which helps to reduce the burden on the building structure. Compared with traditional steel structures, aluminium profiles have lower dead weight while ensuring strength and durability.
The aluminium profiles have excellent corrosion resistance and can withstand the impact of various climatic conditions on the glass curtain wall. Even in high humidity, salt spray, or acid and alkali environments, it can maintain strength and appearance stability, reduce maintenance requirements, and extend service life. In addition, the surface of aluminium profiles supports a variety of treatments such as anodizing, electrophoretic painting, and powder coating to meet the aesthetic requirements of buildings of different styles.
