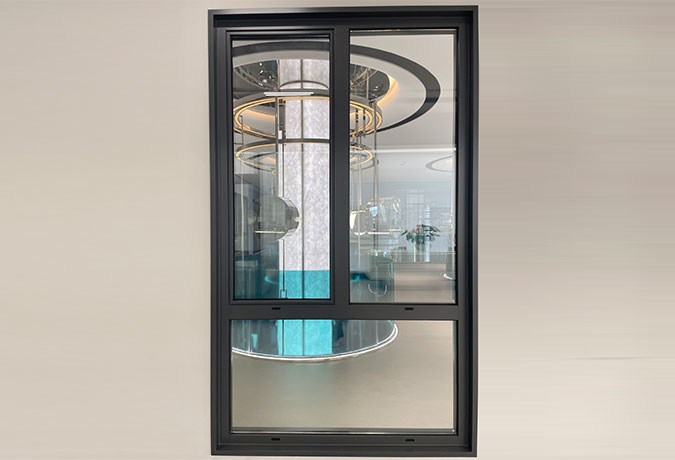

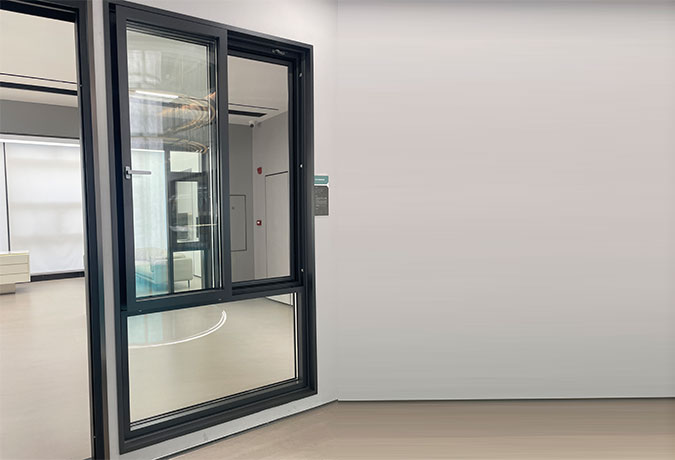

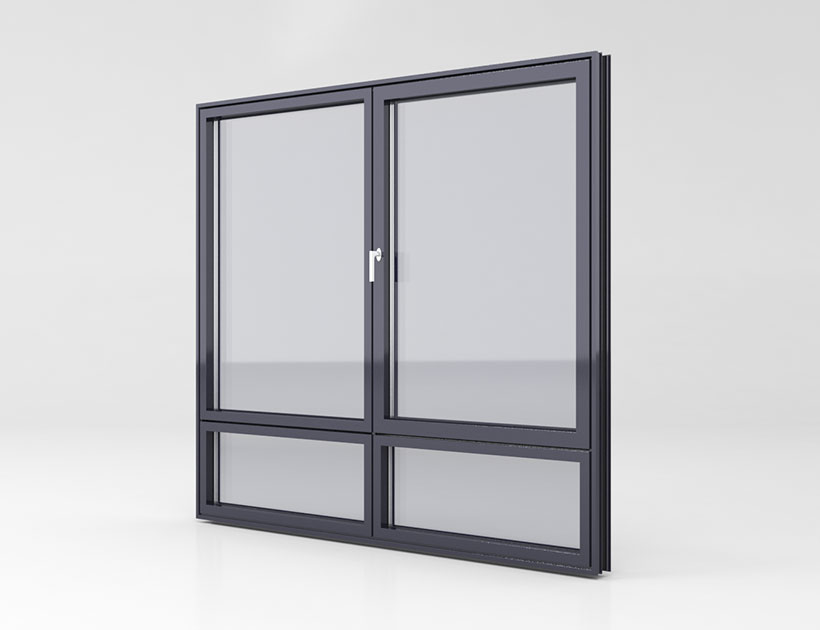

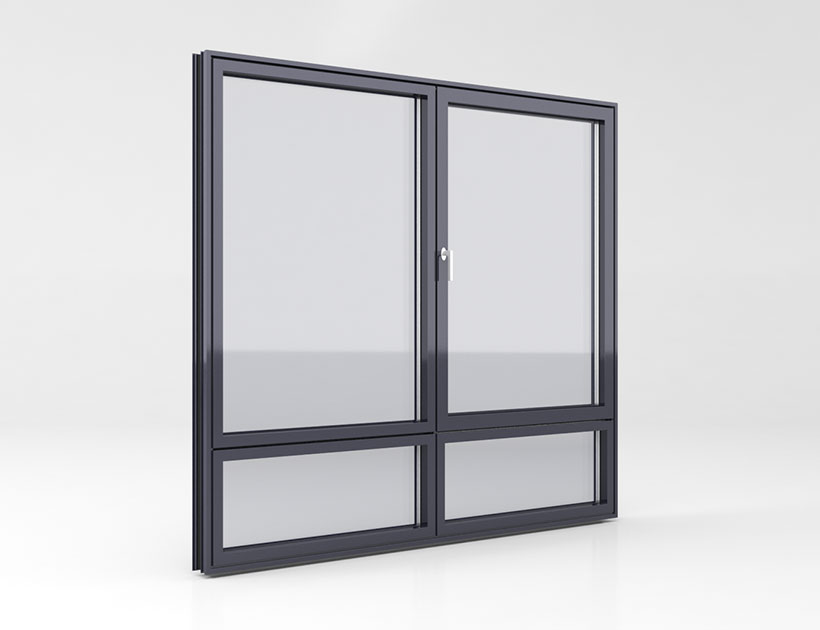

This sliding window has a simple and neat appearance design, which perfectly matches the aesthetic trend of modern architecture. It is suitable for a variety of scenarios such as residences, villas, apartments, and commercial buildings.
Border Color
Features

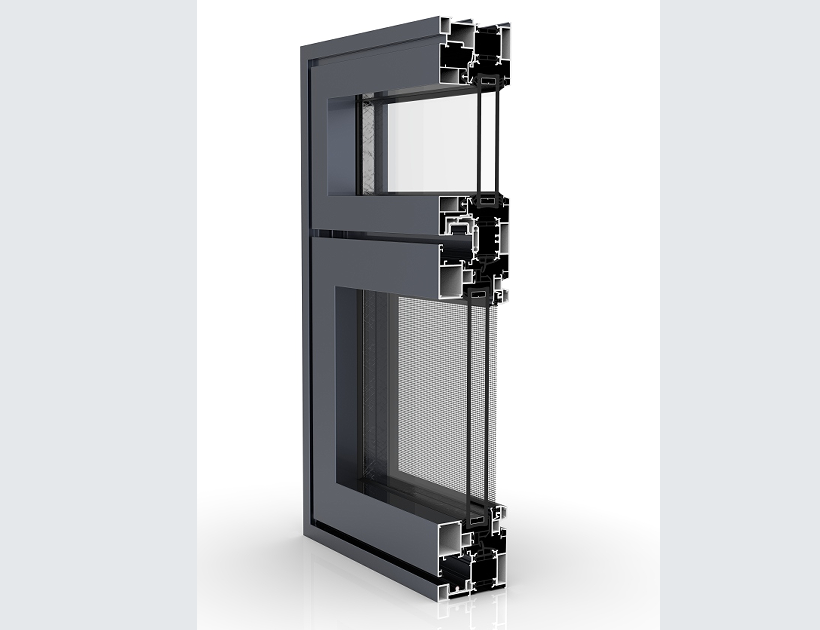

| Main Thickness | 1.8mm |
| Frame Specification | 90mm x 67mm |
| Sash Specification | 67mm x 56mm |
| Glazing Rebate | 36mm |

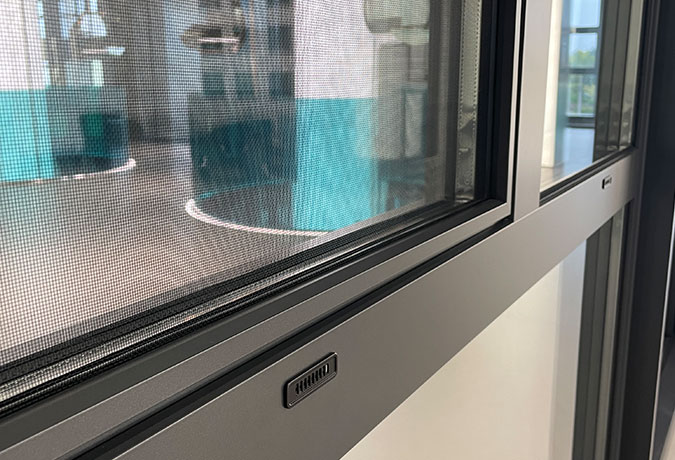

| Mesh | Stainless steel mesh |
| Materials Data | 8.6kg/m² |
| Width of Insulation Strip | 30mm |
| MOQ | 100~500kgs/section |
| Delivery Time | 10~20days |
| Alloy | 6063-T5/T6 |
| Surface Treatment | Anodized and electrophoresis, powder coated, wood grain, fluorocarbon |
| Remarks | We provide both aluminum profiles and also finished product. |
This sliding window is made of high-strength and high-quality aluminium profiles, which have strong pressure resistance and structural stability. It has excellent weather resistance and can effectively resist acid rain, ultraviolet rays, humidity, and other natural environmental erosion. Even after long-term use, the window frame is still as strong as new, not easy to deform or fade, greatly extending the service life and maintenance cycle.

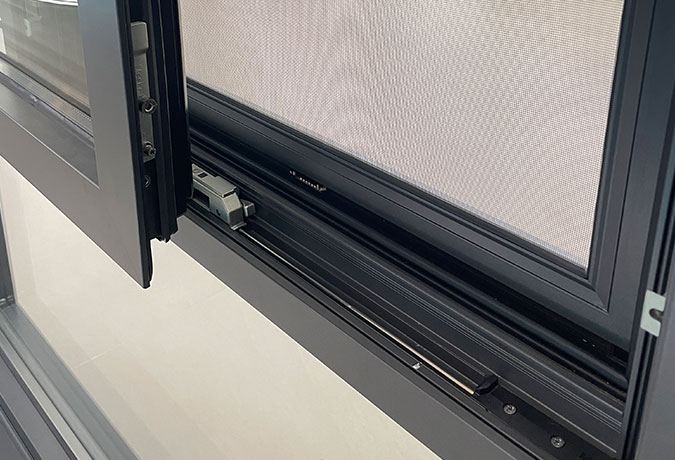

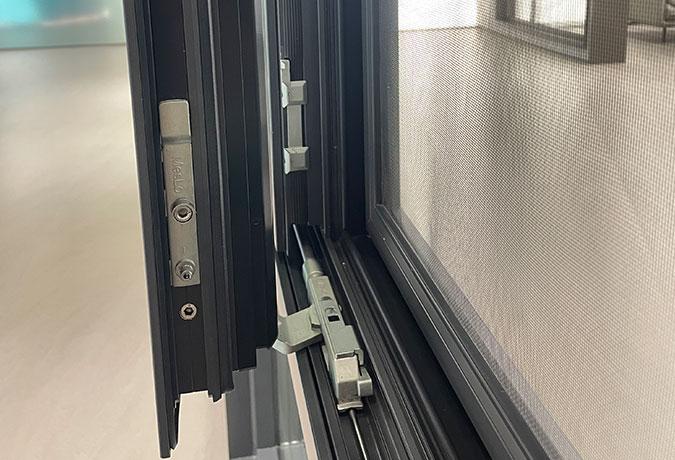

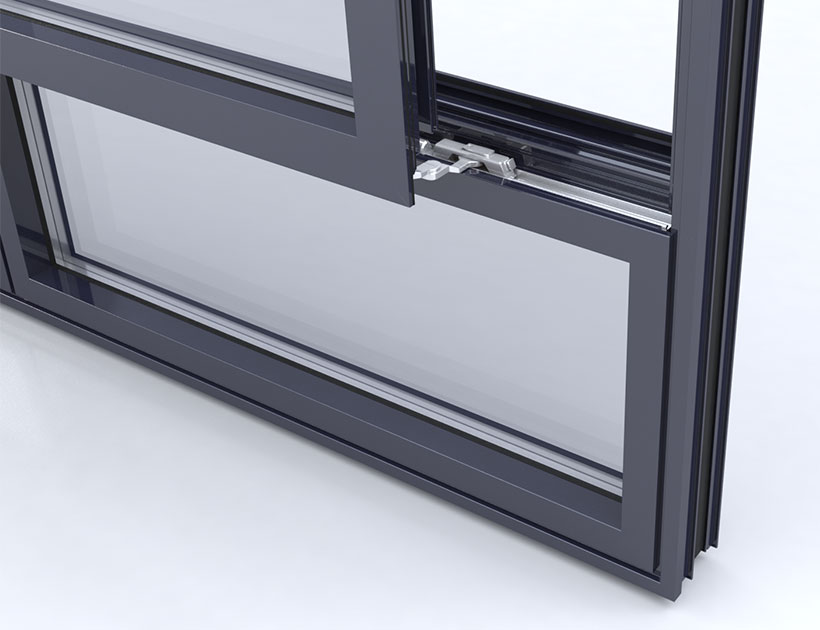

It is equipped with double-layer hollow tempered glass, combined with multiple sealing strips, which effectively isolates external noise and heat conduction, and improves indoor comfort and energy saving. Equipped with a professionally designed high-precision pulley system and high-quality guide rails, the aluminium horizontal sliding window ensures that the window sash is smooth and easy to operate during opening and closing.
It has two opening methods: ground rail push-pull and suspended rail push-pull.It can be applied to various scenarios such as balcony and study.
