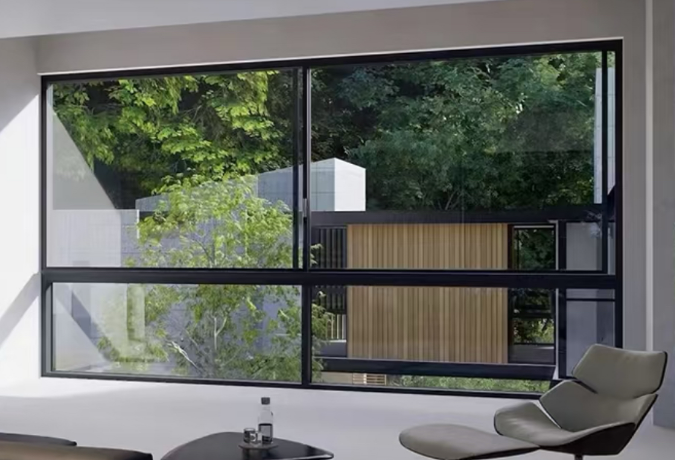

This high-performance aluminium frame sliding window is specially designed for spaces that pursue quality and comfort. Its design has clean and simple lines and a stylish appearance, which can be perfectly integrated into various architectural styles from modern residences and apartment buildings to high-end commercial spaces.
Border Color
Features

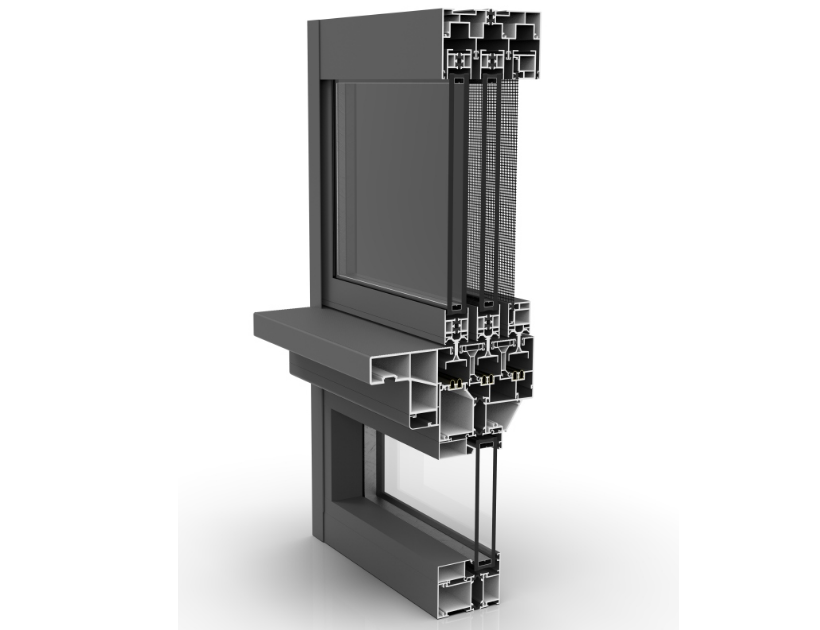

| Width of outer frame | Width 127mm X Height 30mm |
| Width of window sash | Width 30mm X Height 30mm |
| Thickness | 1.8mm |
| Glazing rebate | 27mm |
| Style | Thermal break or common aluminium profiles |
| Mesh | Diamond mesh or High-transparency mesh |
| Materials data | 7.9kg/m² |
| MOQ | 100-500kgs/section |
| Delivery Time | 10-20 days |
| Alloy | 6063T5/T6 |
| Surface treatment | Anodized and eletrophoresis, powder coated, wood grain, PVDF |
| Remarks | We provide both aluminium profiles and also finished product. |
The sliding glass window uses high-strength aluminium profiles to maintain excellent stability and pressure resistance in long-term use. The surface is anodized, which not only improves the overall aesthetics, but also has excellent corrosion resistance and weather resistance. It can adapt to various climatic conditions and avoid deformation, fading, or corrosion caused by sun, wind, rain, humidity, etc.
It is equipped with double-layer hollow tempered glass, which effectively blocks the conduction of indoor and outdoor heat energy, improves the overall insulation effect, blocks heat waves in summer, and reduces heat loss in winter, thereby significantly reducing the energy consumption of air conditioning and heating. At the same time, the hollow glass structure can also effectively isolate external noise, creating a quiet and comfortable environment.
It has two opening methods: ground rail push-pull and suspended rail push-pull.It can be applied to various scenarios such as balcony and study.
